2D Cartesian multi-echo gradient echo

A spoiled low-flip-angle excitation is followed by several Cartesian gradient echoes of the same phase-encode line. Gradient and RF spoiling suppress residual transverse coherence before the next TR. The echo train samples T2* decay while TR and flip angle determine the T1 weighting. Multi-echo GRE is used for T2*/R2* mapping, susceptibility mapping, and structural imaging.

Four-echo train

Four echoes after each excitation, with readout gradients of alternating polarity.

import pypulseqpp as pp
from pypulseqpp.sequences import gre_multiecho2D_sequence

baseline = gre_multiecho2D_sequence(
    n_x=192, n_y=192, n_slices=1, n_echoes=4, te=None, tr=None, n_dummy=0
)
print(f"{baseline.num_blocks} blocks, {baseline.duration()[0]:.2f} s")
print("TE", [round(t * 1e3, 2) for t in baseline.get_definition("TE")], "ms")

2112 blocks, 4.54 s
TE [4.02, 8.7, 13.38, 18.06] ms

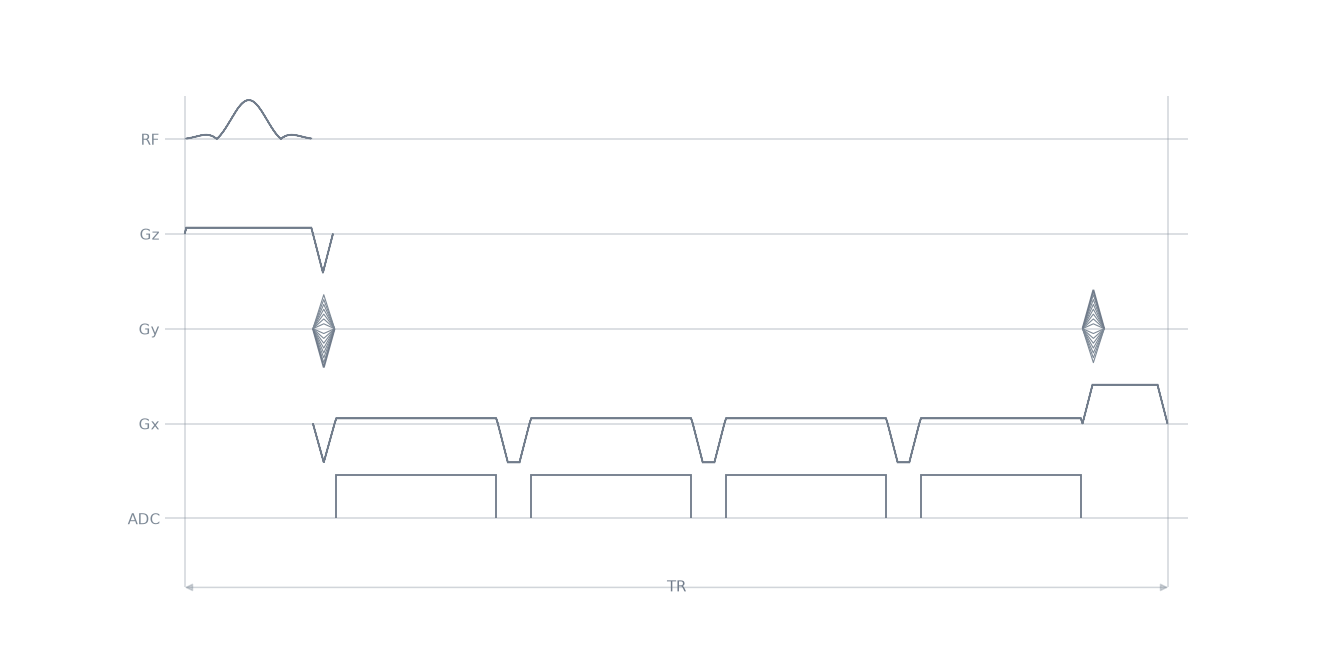

Sequence diagram

baseline.paper_plot()

Sampling order

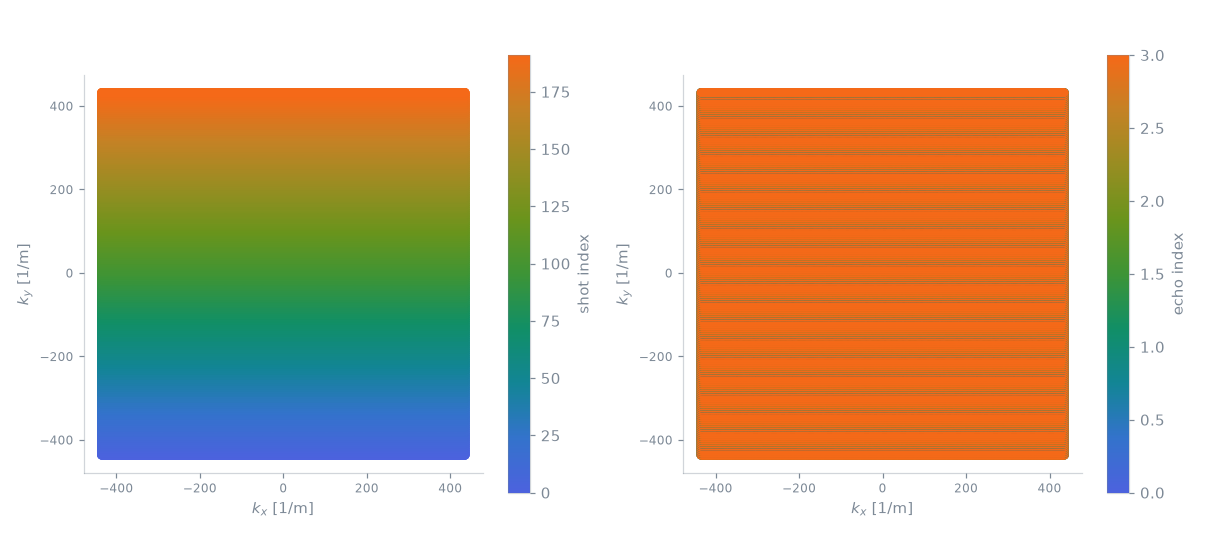

Colour encodes acquisition order. The echoes of one excitation sample the same phase-encode line.

pp.plot.plot_kspace(baseline, color_by="order", plane="xy", show_trajectory=False)

A longer echo train

Additional echoes extend the sampled decay curve and increase the minimum repetition time and final echo time.

alternative = gre_multiecho2D_sequence(
    n_x=192, n_y=192, n_slices=1, n_echoes=8, te=None, tr=None, n_dummy=0
)

                   blocks  duration (s)  acquisitions
4 echoes             2112          4.54           768
8 echoes             3648          8.13          1536

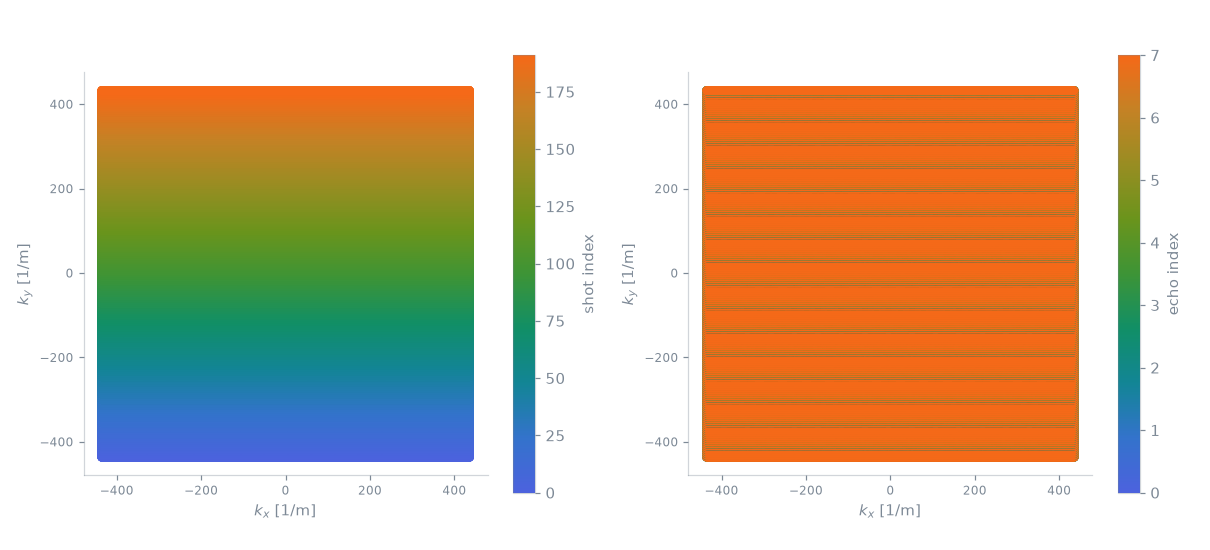

pp.plot.plot_kspace(alternative, color_by="order", plane="xy", show_trajectory=False)
