Signal model

Signal model#

TL;DR

  • A signal model is a Simulator subclass: a handler per kind of event, and a layout of one repetition.

  • The layout is the default description; a Pulseq file or an MRD stream can replace it, and the handlers still play every event.

  • Batching, derivatives, devices, estimation and design are written once against this interface.

You give blochsim a sequence and a tissue, and it returns the signal and its derivatives. The sequence is written once, as a signal model, and the 26 shipped simulators are written the same way as any you add.

Capabilities#

  • Builds a sequence from a subclass that names its handlers and implements layout.

    Show code and tests

    Code: Simulator. Tests: a protocol with no layout says so; a trigger table defaults to the bare operators (test_state_machine.py).

  • Composes operators with @, each starting where the previous one ends.

    Show code and tests

    Code: Operator.__matmul__. Test: a bare operator follows the one before it (test_operators.py).

  • Takes the sequence parameters at construction, and lets a call override them.

    Show code and tests

    Code: bind(). Test: the protocol may be overridden per call (test_state_machine.py).

  • Returns the description the layout produced, with the timestamp of every event.

    Show code and tests

    Code: describe(). Test: the repetition lasts as long as the operators do (test_description_helper.py).

  • Simulates a description read from a Pulseq file or an MRD stream, skipping the layout.

    Show code and tests

    Code: from_pulseq(), from_description(). Tests: a description handed over whole skips the layout (test_state_machine.py); the steady state is the spoiled gradient echo closed form (test_pulseq_reader.py).

  • Plays a read description through the handlers of the class it is given to, which supply the dephasing it does not carry.

    Show code and tests

    Code: from_description(). Test: which simulator reads a stream is what decides the dephasing (test_state_machine.py).

  • Carries a tissue property into the kernels only when a call gives it as a map.

    Show code and tests

    Code: blochsim/_model/_state_machine.py. Tests: a property the model does not declare stays out of the kernel; a declared property given a map reaches the kernel (test_signal_model.py).

  • Accepts a closed form (evaluate) in place of a layout, with the same batching and derivatives.

    Show code and tests

    Code: evaluate(). Test: a closed form travels the same way (test_array_backends.py).

  • Returns the signal in the array library it was given: NumPy, CuPy or PyTorch.

    Show code and tests

    Code: simulate(). Test: the signal comes back in the library it was asked in (test_array_backends.py).

Division of responsibility#

  • Gradient waveforms and spatial encoding, which belong to sequence design tools such as pypulseqpp. An event dephases by whole configuration orders.

  • The reconstruction encoding, which a model-based reconstruction takes from mri-nufft or bartorch.

  • Safety checks on gradients, PNS or SAR.

Method#

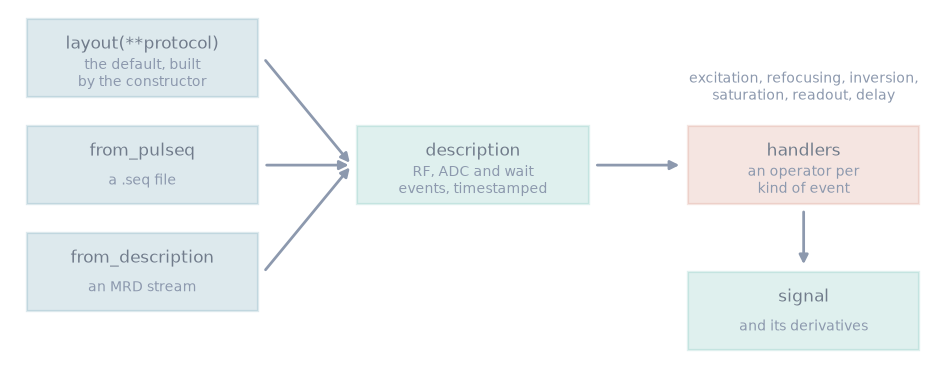

Three sources of a description, the description, the handlers, and the signal.

A description comes from the layout, a Pulseq file or an MRD stream. The handlers play its events, and the kernels return the signal and its derivatives.#

Handlers#

A handler is the operator for one kind of event, bound by a class attribute of that name. A pulse is played by the handler its Pulseq RF use names: excitation, refocusing, inversion, saturation, preparation or other, and a pulse with no use by excitation. An ADC event is played by readout and a wait by delay. A description carries no gradient events: a gradient is an action of the event it follows or precedes, so the handler decides, for example, whether a readout is followed by an unbalanced gradient, ideal spoiling or a rewinder. The built-in readouts SPGRReadout, SSFPFidReadout, bSSFPReadout and FSEReadout cover the four sequence families.

Layout#

layout takes the sequence parameters in milliseconds and degrees, and returns the operators of one repetition, built through self.operators, in seconds and radians. The first call builds the description; later calls rebind the numbers onto it. What is read from a file or stream is in Sequence description, and the tissue physics in Extended phase graphs.
