4. A reconstruction plugin

The raw data a scanner’s reconstruction client streams carry the samples of each readout and little else: the encoding counters and flags it records describe the interpreter’s loop, not the sequence. The reconstruction proxy replaces them with what the sequence states, then hands the readouts to a reconstruction plugin grouped into reconstruction units. This lesson acquires a series of the design from the first lesson, enriches it, and reconstructs it with a plugin of its own. The enrichment is described in Raw-data enrichment and routing.

Learning objectives

• Record a series as a scanner client sends it, from a stored design.

• Read what SequenceTable, enrich_header() and enrich_acquisition() add to the stream: encoding spaces, counters, flags and, where needed, a trajectory and a phase.

• Write a ReconPlugin and run it on the series offline, as the proxy’s workers run it.

The previous lesson walked the cache this series is played from.

The design and the series

The protocol of the first lesson resolves to the same design, so generating it again returns the stored one. simulate() acquires a phantom of four coils, sampled as tissue on a 2 mm grid, by the virtual scanner’s Fourier engine, and record() writes the series to an ISMRMRD file as the scanner’s client sends it: the design identifier in the header, and the samples of each readout.

import tempfile
from pathlib import Path

import ismrmrd
import numpy as np

from pulserver import virtual
from pulserver.protocol import UIParam, format_values, parse_listing

limits = """[Limits]
B0: 3.0
max_grad: 40
grad_unit: mT/m
max_slew: 150
slew_unit: T/m/s
[Limits End]
"""
store = Path(tempfile.mkdtemp())
console = virtual.Console(plugins=[], limits=limits, store=store)
listing = console.design("list", "gre2d")["reply"]
entries = parse_listing(listing[listing.index("[Protocol]") :])
values = {key: entry.value for key, entry in entries.items()}
values.update({UIParam.NX: 64, UIParam.NY: 64})
design = console.design("generate", "gre2d", format_values(values, entries))["design"]
sequence = store / design / "sequence.seq"

phantom = virtual.Phantom(
    [
        virtual.Ellipse((0.0, 0.0, 0.0), (0.08, 0.06)),
        virtual.Ellipse((0.03, 0.01, 0.0), (0.015, 0.015), intensity=-0.5),
    ],
    coils=4,
)
series = store / "series.h5"
readouts = virtual.simulate(sequence, phantom.tissue(2e-3))
print(virtual.record(series, design, readouts), "readouts")

64 readouts

As received, the header’s encoding space holds placeholder sizes, and every acquisition the same encoding counters.

dataset = ismrmrd.Dataset(str(series), "dataset")
header = ismrmrd.xsd.CreateFromDocument(dataset.read_xml_header())
received = [
    dataset.read_acquisition(i) for i in range(dataset.number_of_acquisitions())
]
dataset.close()
matrix = header.encoding[0].encodedSpace.matrixSize
print(f"encoded matrix {matrix.x} x {matrix.y}")
print("phase-encoding counters:", {a.idx.kspace_encode_step_1 for a in received})

encoded matrix 1 x 1
phase-encoding counters: {0}

Enrichment

The proxy finds the design the header names and tabulates its readouts in play order. Each row gives one acquisition its encoding counters, its flags and its encoding space; the header receives the encoding spaces, matrix and field of view the sequence defines.

from pulserver.proxy import SequenceTable, enrich_acquisition, enrich_header

table = SequenceTable.read(sequence)
enrich_header(header, table)
for row, acquisition in enumerate(received):
    enrich_acquisition(acquisition, table, row)

space = header.encoding[0]
print(
    f"encoded {space.encodedSpace.matrixSize.x} x {space.encodedSpace.matrixSize.y}, "
    f"reconstructed {space.reconSpace.matrixSize.x} x {space.reconSpace.matrixSize.y}"
)
print("LIN of the first readouts:", [a.idx.kspace_encode_step_1 for a in received[:4]])
print(
    "last readout closes the slice:", received[-1].isFlagSet(ismrmrd.ACQ_LAST_IN_SLICE)
)
print("trajectory dimensions:", received[0].trajectory_dimensions)

encoded 128 x 64, reconstructed 64 x 64
LIN of the first readouts: [0, 1, 2, 3]
last readout closes the slice: True
trajectory dimensions: 0

The readouts sample the flat top of the readout gradient, so they are placed by their counters and carry no trajectory. Nor does any carry a phase: the field-of-view offset of a design is played as frequency and phase offsets, which are the whole of its phase on a flat top. The proxy computes a phase only where the readout gradient varies during sampling, which a Tour treats (Field-of-view offset and the proxy phase).

shifted = SequenceTable.read(sequence, fov_offset_m=(0.02, 0.0, 0.0))
print("phase applied at a 20 mm offset:", shifted.readout_phase_modulation(0))

phase applied at a 20 mm offset: None

A plugin

A ReconPlugin declares how readouts are grouped into reconstruction units and when a unit closes, here at LAST_IN_SLICE, a flag enrichment supplies, and reconstructs each unit in recon(). The unit’s k-space is (coils, phase encodes, readout), its readout oversampled; the image is cropped to the reconstruction matrix, image_shape.

from pulserver import recon
from pulserver.mrd import AcquisitionFlag


class Fft(recon.ReconPlugin):
    def __init__(self):
        super().__init__(triggers={"imaging": AcquisitionFlag.LAST_IN_SLICE})

    def recon(self, context, branch, data):  # noqa: ARG002
        kspace = data.data.kspace
        image = np.fft.fftshift(
            np.fft.ifft2(np.fft.ifftshift(kspace, axes=(-2, -1))), axes=(-2, -1)
        )
        combined = np.sqrt((np.abs(image) ** 2).sum(axis=0))
        rows, columns = data.data.image_shape[-2:]
        top = (combined.shape[0] - rows) // 2
        left = (combined.shape[1] - columns) // 2
        return recon.ReconResult(combined[top : top + rows, left : left + columns])

run() reconstructs a recorded series in this process through the same hooks a worker drives; with store it enriches the series from its design first, as the proxy does.

images = [
    out
    for out in Fft().run(str(series), store=str(store))
    if isinstance(out, ismrmrd.Image)
]

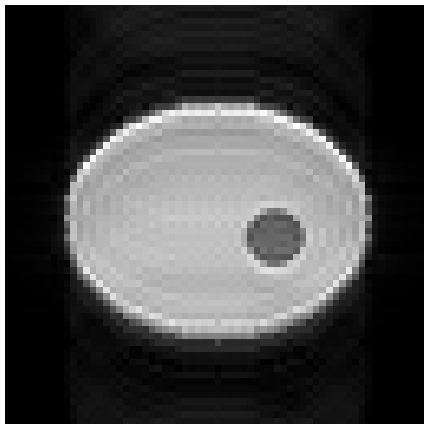

print(f"{len(images)} image of {np.squeeze(images[0].data).shape}")

1 image of (64, 64)

A plugin file holds the class and a module-level PLUGIN instance; the proxy loads it by name from its plugin directories (Reconstruction plugins). The fifth lesson tests a whole acquisition on the virtual scanner.
