Sequence modules

The earlier lessons built the excitation and the readout of a repetition by hand, with event factories. This lesson designs them with sequence modules: a module takes the system limits and a prescription, solves the events and the timing of one part of the repetition, and publishes them, with its timing measured from its center. The module concept, and the reason the design is divided in this way, are described in Sequence design in pypulseqpp.

The first half designs slice-selective excitations with the excitation module, and measures how the three numbers that specify a selective pulse — flip angle, slice thickness and time-bandwidth product — affect the slice profile, the selection gradient and the peak \(B_1\), and which combinations of them the gradient system permits. A slice-selective pulse and its selection gradient are not independent: the gradient has to place the pulse’s bandwidth across the slice,

\[G = \frac{\mathrm{TBW}}{\gamma\, T\, \Delta z} ,\]

so a shorter pulse at the same thickness and the same time-bandwidth product needs a proportionally stronger selection gradient and a proportionally larger \(B_1\). The gradient amplitude limit therefore bounds the two together.

The second half replaces the hand-built readout with the readout module, and uses two prescriptions that earlier lessons solved by hand — a partial echo and a train of echoes — to check that the module reaches the same results and reports them. The order in which lines are acquired is not part of a module; it belongs to the loop of the sequence function of the next lesson, A sequence function. The previous lesson, Radial sampling, played its readout by hand.

Learning objectives

After this lesson, you should be able to:

• design a slice-selective excitation with the excitation module, simulate its slice profile and measure its transition width and ripple;

• relate the time-bandwidth product and the pulse duration to the profile, the selection gradient amplitude and the peak \(B_1\), and identify the designs the gradient amplitude limit permits;

• design a readout with the readout module, read its events, timing, sampling and achieved receiver bandwidth, and play its blocks for one repetition;

• relate the partial-echo fraction to the shortest echo time, and explain why the achieved receiver bandwidth depends on the number of samples;

• compare monopolar and bipolar multi-echo trains.

import numpy as np

import pypulseqpp as pp
import pypulseqpp.sequences as design

#: Gyromagnetic ratio of the proton (Hz/T).
GAMMA = 42.576e6

THICKNESS = 5e-3
FLIP_ANGLE_DEG = 8.0

system = pp.Opts(
    max_grad=40.0,
    grad_unit="mT/m",
    max_slew=150.0,
    slew_unit="T/m/s",
    adc_dead_time=10e-6,
)

Simulating an excitation

The excitation module designs the pulse, its selection gradient and the rephaser that unwinds the second half of the selection. Its sim_rf simulates the Bloch response of its pulse across off-resonance, which under a selection gradient of amplitude selection_amplitude is the slice profile, because a spin at position z is off-resonance by selection_amplitude * z.

def simulate(time_bw_product, duration_s):
    """Design one excitation and simulate the profile its pulse produces."""
    module = design.SpatialSelectiveExcitation(
        system,
        flip_angle_deg=FLIP_ANGLE_DEG,
        thickness_m=THICKNESS,
        duration_s=duration_s,
        time_bw_product=time_bw_product,
    )
    magnetisation, frequency = module.sim_rf()[1:3]
    profile = np.abs(magnetisation)
    return {
        "tbw": time_bw_product,
        "duration": duration_s,
        "gradient": module.selection_amplitude / GAMMA,
        "position": frequency / module.selection_amplitude,
        "profile": profile / profile.max(),
        "time": np.arange(module.rf.signal.size) * system.rf_raster_time,
        "envelope": np.abs(module.rf.signal),
        "peak_b1": float(np.abs(module.rf.signal).max()),
    }

Two numbers describe a profile: how far it takes to fall from the passband to the stopband, and how flat it is on either side of that transition.

def describe(simulated):
    """Transition width, passband ripple and stopband level of a profile."""
    position, profile = simulated["position"], simulated["profile"]
    edge = position > 0
    outward, falling = position[edge], profile[edge]

    def crosses(level):
        index = int(np.argmax(falling < level))
        return np.interp(
            level,
            [falling[index], falling[index - 1]],
            [outward[index], outward[index - 1]],
        )

    passband = profile[np.abs(position) < 0.35 * THICKNESS]
    stopband = profile[np.abs(position) > 1.5 * THICKNESS]
    return {
        **simulated,
        "transition": crosses(0.1) - crosses(0.9),
        "passband": float(passband.max() - passband.min()),
        "stopband": float(stopband.max()),
    }

The time-bandwidth product at a fixed duration

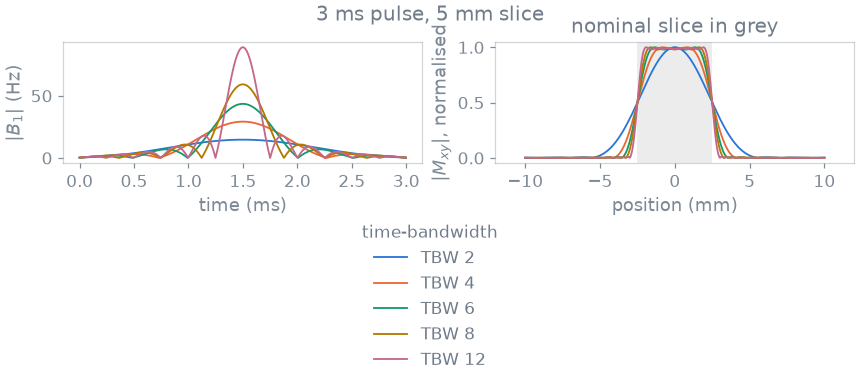

Every design below is 3 ms long and selects the same 5 mm. The pulse has more zero crossings as the time-bandwidth product rises, and the selection gradient rises with it so that the wider bandwidth still lands on the same slice.

PRODUCTS = (2.0, 4.0, 6.0, 8.0, 12.0)

by_product = [describe(simulate(product, 3e-3)) for product in PRODUCTS]

 tbw      gradient    transition    passband    stopband     peak B1
 2.0       3.03 mT/m      3.225 mm      0.2716      0.0041     14.7 Hz
 4.0       6.06 mT/m      1.823 mm      0.1429      0.0024     29.2 Hz
 6.0       9.21 mT/m      1.233 mm      0.0482      0.0015     43.5 Hz
 8.0      12.37 mT/m      0.928 mm      0.0201      0.0011     59.1 Hz
12.0      18.67 mT/m      0.619 mm      0.0143      0.0007     89.0 Hz

Above the smallest product the transition width falls close to inversely with it, so their product settles towards a figure set by the slice thickness rather than by the design. The passband ripple falls over the same range and the stopband stays below a percent throughout. The last column gives the corresponding increase in transmit amplitude: the peak \(B_1\) rises in proportion to the time-bandwidth product, because the same flip angle is delivered by an envelope with more structure in the same time.

The duration at a fixed time-bandwidth product

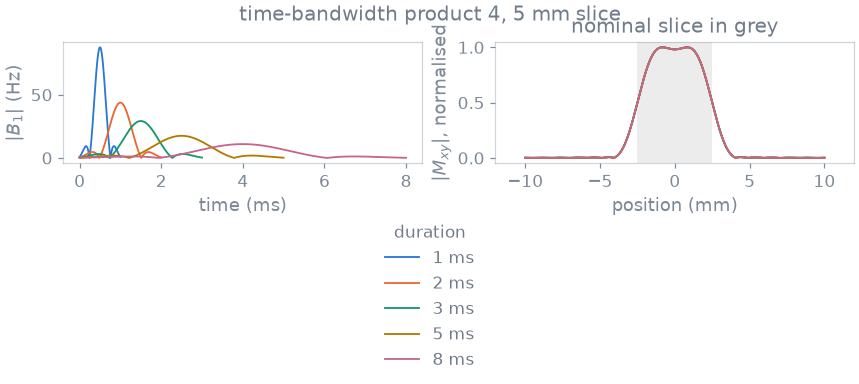

Varying duration at fixed time-bandwidth product separates slice-profile properties from gradient amplitude and peak \(B_1\) requirements.

DURATIONS = (1e-3, 2e-3, 3e-3, 5e-3, 8e-3)

by_duration = [describe(simulate(4.0, duration)) for duration in DURATIONS]

duration_ms      gradient    transition    passband    stopband     peak B1
       1.0      18.16 mT/m      1.823 mm      0.1459      0.0024     87.5 Hz
       2.0       9.08 mT/m      1.823 mm      0.1466      0.0024     43.8 Hz
       3.0       6.06 mT/m      1.823 mm      0.1429      0.0024     29.2 Hz
       5.0       3.63 mT/m      1.823 mm      0.1418      0.0024     17.5 Hz
       8.0       2.27 mT/m      1.823 mm      0.1442      0.0024     10.9 Hz

The five profiles lie on top of each other. The transition width is the same to three decimal places across an eightfold change of duration, and the small residual differences in the ripple follow the number of samples the pulse is written with: on a fixed RF raster a 1 ms envelope has an eighth of the samples of an 8 ms one. The duration sets the selection gradient and the peak \(B_1\), both of which scale as its reciprocal, and the time the repetition spends on the excitation.

Designs admitted by the gradient amplitude limit

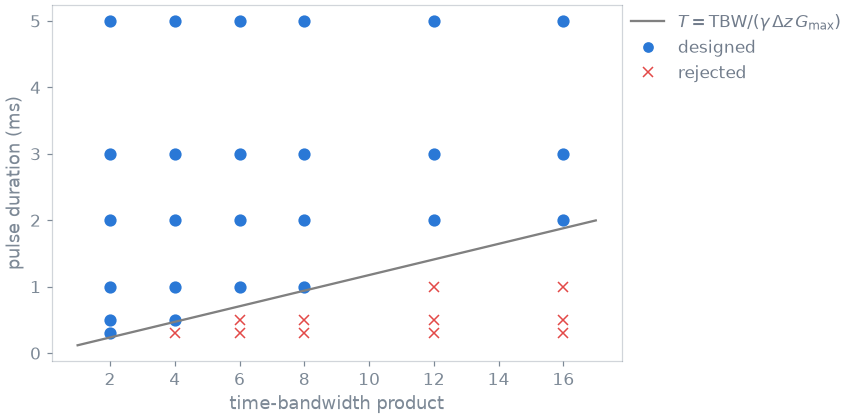

The two sweeps are two lines through one plane, and the amplitude limit cuts it along \(T = \mathrm{TBW} / (\gamma\, \Delta z\, G_\mathrm{max})\). A design above that line is realizable; one below it requires a selection gradient above the amplitude limit, and the module raises an error rather than widening the slice.

grid = []
for product in (2.0, 4.0, 6.0, 8.0, 12.0, 16.0):
    for duration in (0.3e-3, 0.5e-3, 1e-3, 2e-3, 3e-3, 5e-3):
        try:
            design.SpatialSelectiveExcitation(
                system,
                flip_angle_deg=FLIP_ANGLE_DEG,
                thickness_m=THICKNESS,
                duration_s=duration,
                time_bw_product=product,
            )
        except ValueError:
            feasible = False
        else:
            feasible = True
        grid.append({"tbw": product, "duration": duration, "feasible": feasible})

25 of 36 designs realizable, 11 rejected

The designs the module accepted are exactly those above the line. The bound is on the amplitude alone: changing the slew limit over the range a gradient system covers moves none of the points across it, because a lower slew rate lengthens the ramps on either side of the selection plateau, and hence the duration of the module, without changing the plateau amplitude.

The same plane read along its other axis gives the complementary statement: a sharper profile at a fixed slice thickness is available at any duration the gradient amplitude supports, and choosing between a long pulse and a strong gradient determines the echo time and the peak \(B_1\) rather than the profile.

What a readout module holds

The excitation module designs the pulse, its selection gradient and the rephaser; the readout module takes those and the prescription. With the echo time unset, the module uses the shortest echo time the prescription allows. The achieved receiver bandwidth is constrained by the rasters and can differ from the requested one; the module reports the achieved value.

FOV = 220e-3
MATRIX = 128

excitation = design.SpatialSelectiveExcitation(
    system, FLIP_ANGLE_DEG, THICKNESS, duration_s=3e-3, time_bw_product=4.0
)
readout = design.LineReadout2D(
    system,
    excitation.rf,
    excitation.gz,
    excitation.gz_reph,
    fov=(FOV, FOV),
    matrix=(MATRIX, MATRIX),
    te=None,
    readout_bandwidth_hz=250e3,
    spoiling_cycles=4.0,
)

print(
    f"echo time {1e3 * readout.echo_time:.3f} ms, "
    f"module {1e3 * readout.duration:.3f} ms\n"
    f"{readout.n_samples} samples at {readout.bandwidth_hz / 1e3:.1f} kHz, "
    f"echo on sample {readout.center_sample}, "
    f"line spacing {readout.delta_kx:.2f} 1/m"
)

echo time 2.800 ms, module 6.440 ms
128 samples at 100.0 kHz, echo on sample 64, line spacing 4.55 1/m

One repetition

blocks is the module’s playout in order, as tuples of events. A loop adds them to a sequence, scaling the phase-encode template to the line it is acquiring; here the largest step is played, and the pulse’s block is added first because the module is the readout half of the repetition.

seq = pp.Sequence(system=system)
seq.add_block(excitation.rf, excitation.gz)
for block in readout.blocks:
    seq.add_block(*block)

ok, errors = seq.check_timing()
print(f"timing {ok}, {seq.num_blocks} blocks, {1e3 * seq.duration()[0]:.3f} ms")

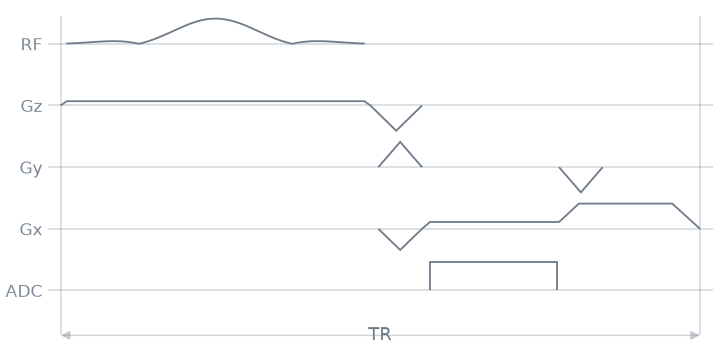

readout.paper_plot()

timing True, 5 blocks, 9.560 ms

Shortest echo time against partial echo

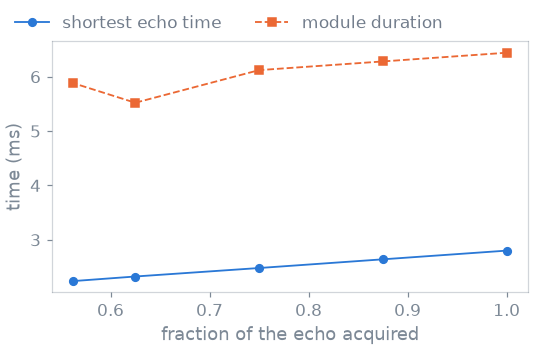

partial_echo is the fraction of the full echo acquired, and truncates the samples before it. The shortest echo time follows, as it did when the same readout was built by hand: the samples that are no longer taken are the ones that stood between the excitation and the echo.

FRACTIONS = (1.0, 0.875, 0.75, 0.625, 0.5625)


def solved(partial_echo=1.0, bandwidth_hz=250e3, **prescription):
    """One readout module, solved for the shortest echo time."""
    return design.LineReadout2D(
        system,
        excitation.rf,
        excitation.gz,
        excitation.gz_reph,
        fov=(FOV, FOV),
        matrix=(MATRIX, MATRIX),
        te=None,
        partial_echo=partial_echo,
        readout_bandwidth_hz=bandwidth_hz,
        spoiling_cycles=4.0,
        **prescription,
    )


partial = [
    {
        "fraction": fraction,
        "module": solved(partial_echo=fraction),
    }
    for fraction in FRACTIONS
]

partial echo   samples   echo on      achieved          TE      module
      1.0000       128        64      100.0 kHz    2.800 ms    6.440 ms
      0.8750       112        48      100.0 kHz    2.640 ms    6.280 ms
      0.7500        96        32      100.0 kHz    2.480 ms    6.120 ms
      0.6250        80        16      250.0 kHz    2.324 ms    5.520 ms
      0.5625        72         8      100.0 kHz    2.240 ms    5.880 ms

The sample the echo lands on moves with the fraction, and the echo time falls with it.

The achieved bandwidth is not the requested one at every fraction, and not the same one at every fraction either. A dwell time lies on the ADC raster and an acquisition window on the gradient raster, and whether a given dwell satisfies both depends on how many samples are taken: at 80 samples the requested 250 kHz lands on both rasters and is used, and at the neighbouring counts the fastest rate that does is 100 kHz. That is why the module duration does not fall monotonically while the echo time does, and why the module reports the achieved rate rather than the requested one.

Monopolar against bipolar trains

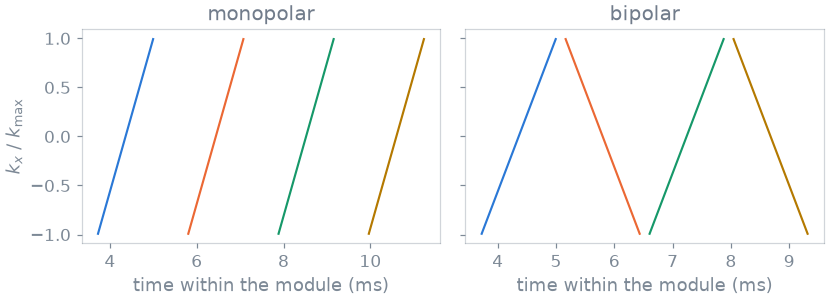

n_echoes sets the train length, and flyback selects how it is played: a monopolar train rewinds between the echoes so that every one is read in the same direction, and a bipolar train alternates the readout sign, as the hand-built echo train of Echo planar imaging does. The bipolar train is shorter by the duration of the rewinders, and its even echoes are read backwards.

ECHOES = 4

trains = {
    "monopolar": solved(n_echoes=ECHOES, flyback=True),
    "bipolar": solved(n_echoes=ECHOES, flyback=False),
}

    train    echo spacing    first echo       module
monopolar        2.080 ms      2.800 ms    12.800 ms
  bipolar        1.440 ms      2.800 ms    10.880 ms

Every echo of the monopolar train is traversed in the same direction and the gaps between them are the rewinders; the bipolar train has no gaps and every second echo runs backwards. The choice between them follows from the relationship measured in the echo planar lesson: the bipolar train is shorter, and any delay between the gradient and the acquisition enters it as a difference between the odd and the even echoes rather than as a shift common to all of them.
