A sequence function

The previous lesson, Sequence modules, designed an excitation and a readout with modules. This lesson assembles them into a complete acquisition. A sequence function takes the system limits and a protocol: it designs the modules, plays one repetition per line of k-space and returns the sequence. The function records the encoding labels with Labels. parameters() reads its protocol, and write() writes the sequence it returns.

The sequence is the RF-spoiled slice-selective gradient echo of Spoiling, expressed as a sequence function rather than as a loop over events. Each sequence in Sequence catalogue is such a function, in its own module of pypulseqpp.sequences. The structure is described in Sequence design in pypulseqpp.

Learning objectives

After this lesson, you should be able to:

• state what a sequence function designs before its loop, plays in the loop and records after it;

• write a function of the system limits and a protocol of keyword parameters that designs and plays a sequence, recording its encoding indices with Labels;

• read the acquisition order back from the LIN labels of the sequence;

• read the protocol of a sequence function with parameters(), derive its command-line options from the same signature, and write what it returns with write().

Sequence function

system is the first parameter and the keyword parameters after it are the protocol. Before the loop, the function lowers the limits of system to the gradient and slew limits it is designed for with cap_system(), which never raises a limit, and designs the excitation and readout modules; the readout module solves the echo and repetition times that are None. The loop plays one repetition per line of k-space. A label keeps its value until an event changes it, so Labels returns only the LIN events a block needs. After the loop, the geometry a reconstruction reads is recorded as definitions and the function returns the sequence.

import numpy as np

import pypulseqpp as pp
import pypulseqpp.sequences as design


def spoiled_gradient_echo(
    system: pp.Opts,
    *,
    fov: float = 220e-3,
    matrix: int = 128,
    slice_thickness: float = 5e-3,
    flip_angle_deg: float = 12.0,
    te: float | None = None,
    tr: float | None = None,
) -> pp.Sequence:
    """RF-spoiled 2D Cartesian gradient echo, one line per repetition.

    Parameters
    ----------
    fov : float, default=0.22
        Isotropic field of view (m).
    matrix : int, default=128
        Matrix size along both encoded axes.
    slice_thickness : float, default=0.005
        Slice thickness (m).
    flip_angle_deg : float, default=12.0
        Excitation flip angle (degrees).
    te : float | None, default=None
        Echo time (s). ``None`` is as short as the readout admits.
    tr : float | None, default=None
        Repetition time (s). ``None`` is as short as possible.
    """
    system = pp.cap_system(system, max_grad=40.0, max_slew=150.0)
    excitation = design.SpatialSelectiveExcitation(
        system,
        flip_angle_deg=flip_angle_deg,
        thickness_m=slice_thickness,
        duration_s=3e-3,
    )
    readout = design.LineReadout2D(
        system,
        excitation.rf,
        excitation.gz,
        excitation.gz_reph,
        fov=(fov, fov),
        matrix=(matrix, matrix),
        te=te,
        tr=tr,
    )

    # Quadratic RF spoiling: the phase increment grows by 117 degrees per
    # repetition.
    phases = np.deg2rad(117.0) * np.cumsum(np.arange(matrix))

    seq, labels = pp.Sequence(system), design.Labels()
    for line in range(matrix):
        phase = phases[line] % (2 * np.pi)
        readout.rf.phase_offset = readout.adc.phase_offset = phase
        step = (line - matrix // 2) / (matrix / 2)
        seq.add_block(readout.rf, readout.gz, *labels(LIN=line))
        seq.add_block(
            readout.gx_pre, pp.scale_grad(readout.gy_pre, step), readout.gz_reph
        )
        seq.add_block(readout.gx, readout.adc)
        seq.add_block(readout.gx_spoil, pp.scale_grad(readout.gy_rew, step))
        if getattr(readout, "wait_tr", None) is not None:
            seq.add_block(readout.wait_tr)

    seq.set_definition("FOV", [fov, fov, slice_thickness])
    seq.set_definition("Matrix", [matrix, matrix, 1])
    seq.set_definition("Name", "tour_gre_2d")
    return seq

Sequence construction

Calling the function designs the whole scan. The system is the default Opts, whose limits the function lowers to at most 40 mT/m and 150 T/m/s.

seq = spoiled_gradient_echo(pp.Opts(), matrix=128)
print(f"{seq.num_blocks} blocks, {seq.duration()[0]:.2f} s")
print("timing:", seq.check_timing()[0])
print("definitions:", sorted(seq.definitions))

512 blocks, 0.71 s
timing: True
definitions: ['FOV', 'Matrix', 'Name', 'TotalDuration']

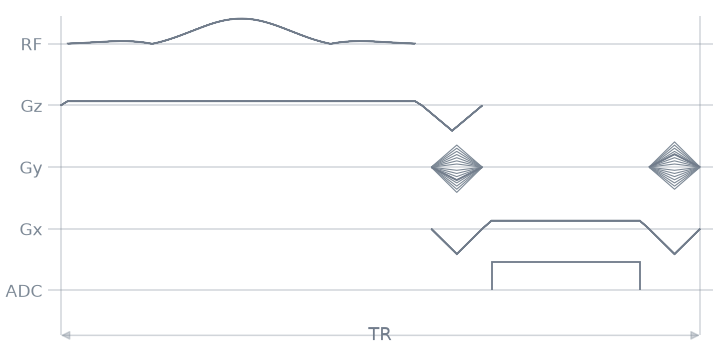

Sequence diagram

seq.paper_plot(tr=32)

Acquisition order

The first change of a label is a SET, a change that repeats the previous change is an INC, and an unchanged value writes no event.

labels = design.Labels()
for line in (0, 1, 2, 3, 3):
    print(f"LIN={line}:", [(e.type, e.value) for e in labels(LIN=line)])

LIN=0: [('labelset', 0)]
LIN=1: [('labelset', 1)]
LIN=2: [('labelinc', 1)]
LIN=3: [('labelinc', 1)]
LIN=3: []

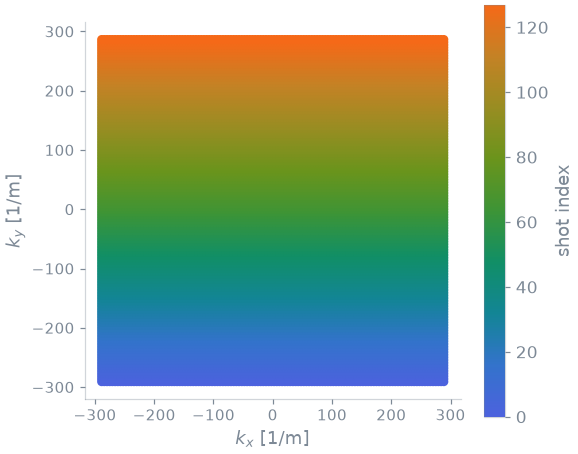

Every acquisition of the sequence carries its LIN label, so the order the loop played is read back from the sequence rather than reconstructed.

pp.plot.plot_kspace(seq, color_by="order", plane="xy", show_trajectory=False)

Protocol

The type and default of a protocol parameter are read from the signature, and its unit from the first parenthesised group of its description in the Parameters section. A protocol editor reads this record, and the command line derives its options from the same signature and Parameters section.

for name, parameter in design.parameters(spoiled_gradient_echo).items():
    print(
        f"{name:16}{parameter.type.__name__:7}{parameter.unit:9}"
        f"default {parameter.default}"
    )

fov             float  m        default 0.22
matrix          int             default 128
slice_thickness float  m        default 0.005
flip_angle_deg  float  degrees  default 12.0
te              float  s        default None
tr              float  s        default None

Command-line interface

pypulseqpp.cli.run() derives one option from each keyword parameter, with the help text from the Parameters section, builds system from the limit options and writes the result with write(). A script that ends with

if __name__ == "__main__":
    raise SystemExit(cli.run(spoiled_gradient_echo, sys.argv[1:]))

is run as python gre.py --matrix 64 --te 5e-3 -o gre.seq. A function that returns a list of sequences is written as a chain of files, each naming the next with NextSequence.

from pathlib import Path
from tempfile import mkdtemp

path = Path(mkdtemp()) / "tour_gre_2d.seq"
print([Path(written).name for written in design.write(path, seq)])

['tour_gre_2d.seq']
