A ramp-sampled readout module

The previous lesson wrote an excitation module. This lesson writes a Cartesian readout module that follows the SequenceModule contract, and compares it with the shipped readout.

The shipped Cartesian readouts acquire on the flat top of the readout lobe, so the area under the ramps is not sampled. Sampling through the ramps as well covers the same extent of k-space in a shorter lobe; the resulting sampling locations are not evenly spaced, so the data require regridding before a Fourier transform. The module concept, and the events a module publishes, are described in Sequence modules.

Learning objectives

After this lesson, you should be able to:

• implement init_module for a readout module and set its center to the echo;

• design a prephaser and an acquisition window that sample through the ramps of the readout lobe;

• compare the readout duration of ramp-sampled and flat-top designs at the same resolution and sampling rate;

• measure the nonuniform sample spacing along the line from the k-space analysis;

• play the module over a matrix in a scan loop.

Module interface

init_module assigns self.seq, adds the blocks of the layout to it and sets center, which for a readout is the interval from the start of the module to the echo. Events bound to local variables are published under those names, so a scan loop reaches the phase encode as readout.gy_pre without the module returning anything.

The prephaser has half the area of the whole lobe, ramps included, so the echo lands at the middle of the lobe rather than the middle of its flat top. The acquisition window is centred on the lobe and sampled at a fixed rate: equal steps in time over a gradient that is not constant are unequal steps in k.

import math

import numpy as np

import pypulseqpp as pp
import pypulseqpp.sequences as design


class RampSampledLineReadout(design.SequenceModule):
    """Cartesian line readout acquired across the whole readout lobe.

    Parameters
    ----------
    system : pypulseqpp.Opts
        System limits.
    rf : RfEvent
        The pulse that opens the repetition.
    gz : GradEvent, optional
        Its selection gradient, played in the same block.
    gz_reph : GradEvent, optional
        Its rephaser, played in the prewinder block.
    fov : float
        Isotropic in-plane field of view (m).
    matrix : int
        Isotropic in-plane matrix size.
    readout_bandwidth_hz : float, optional
        Requested ADC sampling rate (Hz). ``bandwidth_hz`` reports the rate
        the ADC raster admits.
    spoiling_cycles : float, optional
        Dephasing left on the read axis at the end of the repetition, in
        cycles across one voxel.

    Attributes
    ----------
    gx_pre : TrapEvent
        Readout prephaser, half the area of the lobe.
    gy_pre : TrapEvent
        Phase encode at its largest step, for the loop to scale.
    gx : TrapEvent
        Readout lobe, sampled from ramp to ramp.
    adc : AdcEvent
        The acquisition window, centred on the lobe.
    gx_spoil : TrapEvent
        Rewinds the second half of the line and adds the spoiling.
    gy_rew : TrapEvent
        The negated phase encode, scaled by the loop alongside ``gy_pre``.
    echo_time : float
        From the RF isodelay to the echo (s).
    center_sample : int
        Index of the sample at the echo.
    bandwidth_hz : float
        Achieved ADC sampling rate (Hz).
    """

    def init_module(
        self,
        system: pp.Opts,
        rf,
        gz=None,
        gz_reph=None,
        *,
        fov: float,
        matrix: int,
        readout_bandwidth_hz: float = 500e3,
        spoiling_cycles: float = 4.0,
    ) -> None:
        gx = pp.make_trapezoid("x", area=matrix / fov, system=system)
        span = pp.calc_duration(gx)

        dwell = (
            math.floor(1.0 / readout_bandwidth_hz / system.adc_raster_time)
            * system.adc_raster_time
        )
        # The window is centred on the lobe and clears the ADC dead time at
        # both ends, so the echo falls between two samples of it.
        divisor = int(system.adc_samples_divisor)
        usable = span - 2 * system.adc_dead_time
        n_samples = int(usable / dwell + 1e-9) // divisor * divisor
        adc = pp.make_adc(
            num_samples=n_samples,
            dwell=dwell,
            delay=pp.round_to_raster(
                0.5 * (span - n_samples * dwell), system.adc_raster_time
            ),
            system=system,
        )

        gx_pre = pp.make_trapezoid("x", area=-0.5 * gx.area, system=system)
        gy_pre = pp.make_trapezoid("y", area=0.5 * matrix / fov, system=system)
        gy_rew = pp.scale_grad(gy_pre, -1.0)
        gx_spoil = pp.make_trapezoid(
            "x", area=-0.5 * gx.area + spoiling_cycles * matrix / fov, system=system
        )

        self.seq = pp.Sequence(system)
        self.seq.add_block(*filter(None, (rf, gz)))
        self.seq.add_block(*filter(None, (gx_pre, gy_pre, gz_reph)))
        self.seq.add_block(gx, adc)
        self.seq.add_block(gx_spoil, gy_rew)

        rf_center = float(rf.delay) + float(rf.center)
        self.echo_time = (
            pp.calc_duration(*filter(None, (rf, gz)))
            - rf_center
            + pp.calc_duration(*filter(None, (gx_pre, gy_pre, gz_reph)))
            + 0.5 * span
        )
        self.center = rf_center + self.echo_time
        self.center_sample = round((0.5 * span - adc.delay) / dwell)
        self.bandwidth_hz = 1.0 / dwell

Readout duration

Both designs sample the same extent of k-space, so both resolve the same matrix over the same field of view. The flat-top design covers that extent on its plateau alone, and its ramps add duration without adding samples.

system = pp.Opts(
    max_grad=40.0,
    grad_unit="mT/m",
    max_slew=150.0,
    slew_unit="T/m/s",
    rf_dead_time=100e-6,
    rf_ringdown_time=30e-6,
    adc_dead_time=10e-6,
)

FOV = 220e-3
MATRIX = 192

ramp_sampled = pp.make_trapezoid("x", area=MATRIX / FOV, system=system)
flat_topped = pp.make_trapezoid(
    "x",
    amplitude=ramp_sampled.amplitude,
    flat_time=pp.round_to_raster(
        MATRIX / FOV / ramp_sampled.amplitude, system.grad_raster_time
    ),
    system=system,
)
for name, lobe in (("ramp-sampled", ramp_sampled), ("flat top only", flat_topped)):
    print(
        f"{name:14} lobe {pp.calc_duration(lobe) * 1e6:6.0f} us, "
        f"flat {lobe.flat_time * 1e6:6.0f} us, amplitude "
        f"{lobe.amplitude / system.gamma * 1e3:5.1f} mT/m"
    )

ramp-sampled   lobe    800 us, flat    240 us, amplitude  39.4 mT/m
flat top only  lobe   1080 us, flat    520 us, amplitude  39.4 mT/m

One repetition

excitation = design.SpatialSelectiveExcitation(
    system, flip_angle_deg=12.0, thickness_m=5e-3, duration_s=3e-3
)
readout = RampSampledLineReadout(
    system,
    excitation.rf,
    excitation.gz,
    excitation.gz_reph,
    fov=FOV,
    matrix=MATRIX,
)

print("events:", ", ".join(sorted(vars(readout.events))))
print(
    f"{int(readout.adc.num_samples)} samples at {readout.bandwidth_hz * 1e-3:.0f} kHz, "
    f"echo at sample {readout.center_sample}"
)
print(
    f"TE {readout.echo_time * 1e3:.3f} ms over a {readout.duration * 1e3:.3f} ms "
    "repetition"
)

/home/runner/work/pypulseqpp/pypulseqpp/docs/build/site/pypulseqpp/_events.py:273: UserWarning: Specified RF delay 0.00 us is less than the dead time 100 us. Delay was increased to the dead time.
  made = factory(*args, **kwargs)
events: adc, gx, gx_pre, gx_spoil, gy_pre, gy_rew, gz, gz_reph, rf
388 samples at 500 kHz, echo at sample 194
TE 2.520 ms over a 6.600 ms repetition

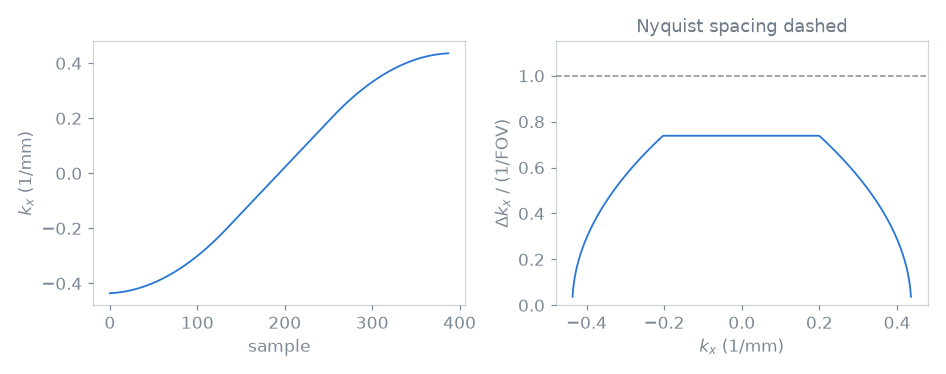

Sample spacing along the line

calculate_kspace is one of the analyses a module forwards to the sequence it built, so the sample positions come from the events themselves rather than from the design arithmetic. The spacing is finest on the ramps, where the gradient is weakest, and largest on the plateau, where it remains below the Nyquist spacing for the prescribed field of view. Consecutive samples at the start and at the end of the window, taken while the gradient is near zero, are almost coincident in k, so these edge samples are redundant. The nonuniform sampling locations require regridding during reconstruction.

k_adc = readout.calculate_kspace()[0]
k_read = k_adc[0]
spacing = np.diff(k_read)
print(
    f"k spacing from {spacing.min():.2f} to {spacing.max():.2f} 1/m, "
    f"Nyquist {1 / FOV:.2f} 1/m"
)

k spacing from 0.17 to 3.36 1/m, Nyquist 4.55 1/m

Scan loop

The loop scales the published phase encode per line and labels the acquisition; the rest of the layout is played as the module laid it out.

seq = pp.Sequence(system=system)
for line in range(MATRIX):
    ky = (line - MATRIX // 2) / (MATRIX / 2)
    seq.add_block(excitation.rf, excitation.gz, pp.make_label("LIN", "SET", line))
    seq.add_block(readout.gx_pre, pp.scale_grad(readout.gy_pre, ky), excitation.gz_reph)
    seq.add_block(readout.gx, readout.adc)
    seq.add_block(readout.gx_spoil, pp.scale_grad(readout.gy_rew, ky))

print(
    f"{seq.num_blocks} blocks, {seq.duration()[0]:.2f} s, timing {seq.check_timing()[0]}"
)

768 blocks, 1.27 s, timing True

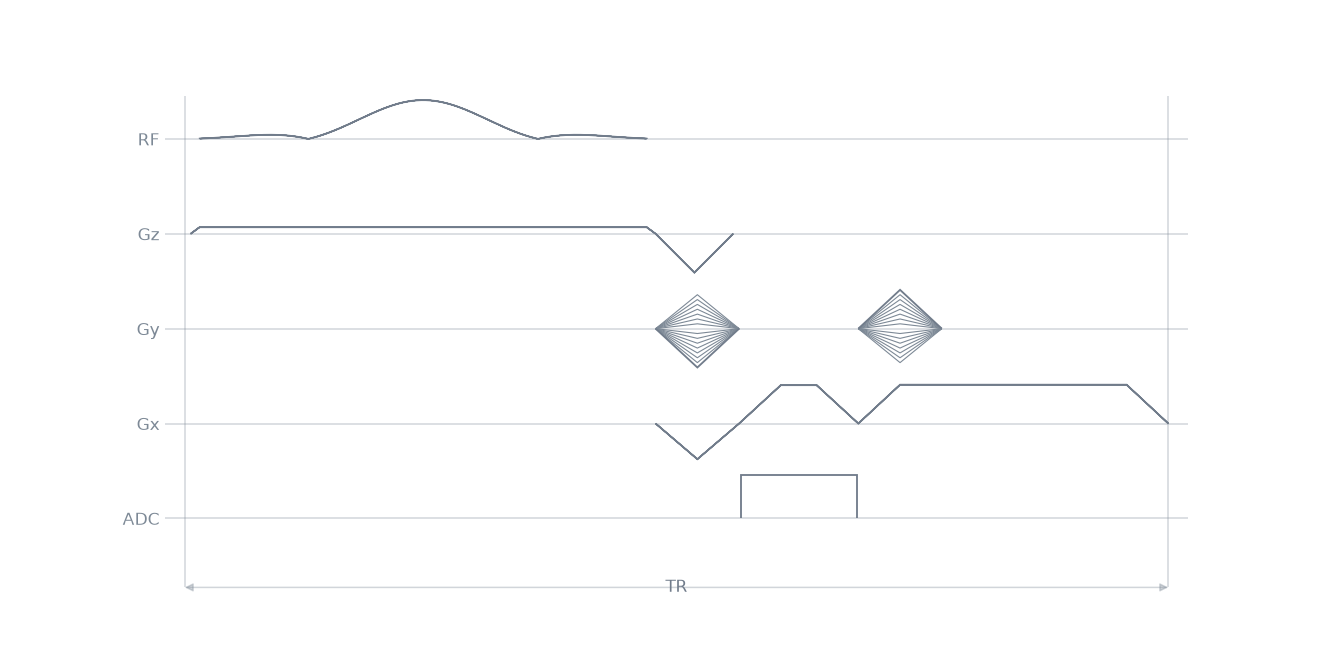

One repetition of the module.

seq.paper_plot(tr=1)
