A minimum-phase excitation module

The earlier lessons used the shipped modules. This lesson writes an excitation module by subclassing RfModule, and compares the design it implements with the shipped one.

The shipped excitation modules design linear-phase SLR pulses, whose energy is symmetric about the middle of the pulse. A minimum-phase design concentrates RF energy near the end of the waveform, so that at a fixed duration and time-bandwidth product the interval from the pulse to the echo is shorter. The peak \(B_1\) is larger, and the phase of the slice profile is not linear. The module concept, and the events a module publishes, are described in Sequence modules.

Learning objectives

After this lesson, you should be able to:

• subclass RfModule and implement init_module;

• publish the pulse, selection gradient and rephaser of a module and set its timing reference center;

• place the effective RF centre of a minimum-phase SLR pulse with center_pos;

• compare the envelope, slice profile and peak \(B_1\) of linear-phase and minimum-phase designs;

• measure the shortest echo time a readout module reaches with each excitation.

Module interface

A module implements init_module: it assigns self.seq, adds the blocks of its layout to it, and sets center, the timing reference the rest of the sequence is placed against. Events bound to local variables of init_module are published under those names, so nothing is returned.

Subclassing RfModule rather than SequenceModule adds sim_rf(), which simulates the module’s pulse against off-resonance.

center_pos places the effective RF centre, which sets both the rephasing area make_slr_pulse() returns and the instant a readout module measures its echo time from. A minimum-phase pulse is used at center_pos=1.0, its own end.

import numpy as np

import pypulseqpp as pp
import pypulseqpp.sequences as design


class MinimumPhaseExcitation(design.RfModule):
    """Slice-selective excitation whose energy is concentrated at its end.

    Parameters
    ----------
    system : pypulseqpp.Opts
        System limits.
    flip_angle_deg : float
        Nominal flip angle (degrees).
    thickness_m : float
        Slice thickness (m).
    duration_s : float, optional
        Pulse duration (s).
    time_bw_product : float, optional
        Time-bandwidth product of the SLR design.
    center_pos : float, optional
        Effective centre of the pulse, as a fraction of its duration.
    axis : {'z', 'x', 'y'}, optional
        Selection axis.

    Attributes
    ----------
    rf : RfEvent
        The pulse.
    gz : GradEvent
        Its selection gradient.
    gz_reph : GradEvent
        The rephaser that unwinds the selection played after the effective
        centre.
    selection_amplitude : float
        Selection gradient amplitude (Hz/m).
    slice_thickness : float
        Thickness the pulse and its selection gradient produce (m): the
        pulse's measured bandwidth over the gradient amplitude.
    """

    def init_module(
        self,
        system: pp.Opts,
        flip_angle_deg: float,
        thickness_m: float,
        duration_s: float = 3e-3,
        *,
        time_bw_product: float = 4.0,
        center_pos: float = 1.0,
        axis: str = "z",
    ) -> None:
        rf, gz, gz_reph = pp.make_slr_pulse(
            np.deg2rad(flip_angle_deg),
            duration=duration_s,
            slice_thickness=thickness_m,
            time_bw_product=time_bw_product,
            filter_type="min",
            center_pos=center_pos,
            return_gz=True,
            use="excitation",
            system=system,
        )
        gz.channel = axis
        gz_reph.channel = axis

        self.seq = pp.Sequence(system)
        self.seq.add_block(rf, gz)
        self.seq.add_block(gz_reph)

        self.center = float(rf.delay) + float(rf.center)
        self.selection_amplitude = float(gz.amplitude)
        self.slice_thickness = float(pp.calc_rf_bandwidth(rf) / abs(gz.amplitude))

Published events

system = pp.Opts(
    max_grad=40.0,
    grad_unit="mT/m",
    max_slew=150.0,
    slew_unit="T/m/s",
    rf_dead_time=100e-6,
    rf_ringdown_time=30e-6,
    adc_dead_time=10e-6,
)

FLIP_ANGLE_DEG = 20.0
THICKNESS_M = 5e-3
DURATION_S = 3e-3

minimum_phase = MinimumPhaseExcitation(system, FLIP_ANGLE_DEG, THICKNESS_M, DURATION_S)
linear_phase = design.SpatialSelectiveExcitation(
    system, FLIP_ANGLE_DEG, THICKNESS_M, DURATION_S
)

print("events:", ", ".join(sorted(vars(minimum_phase.events))))
for name, module in (("linear", linear_phase), ("minimum", minimum_phase)):
    print(
        f"{name}-phase: center at {module.center * 1e3:.3f} ms of "
        f"{module.duration * 1e3:.3f} ms, rephaser area "
        f"{module.gz_reph.area:.1f} 1/m"
    )

/home/runner/work/pypulseqpp/pypulseqpp/docs/build/site/pypulseqpp/_events.py:273: UserWarning: Specified RF delay 0.00 us is less than the dead time 100 us. Delay was increased to the dead time.
  made = factory(*args, **kwargs)
events: gz, gz_reph, rf
linear-phase: center at 1.600 ms of 3.680 ms, rephaser area -408.0 1/m
minimum-phase: center at 3.100 ms of 3.240 ms, rephaser area -8.0 1/m

The rephaser compensates the slice-selection moment accumulated after the effective RF centre. At center_pos=1.0 that moment is the fall ramp alone, so the rephaser block has its minimum duration and the pulse ends a gradient raster period or two before the encoding starts.

Pulse envelope and slice profile

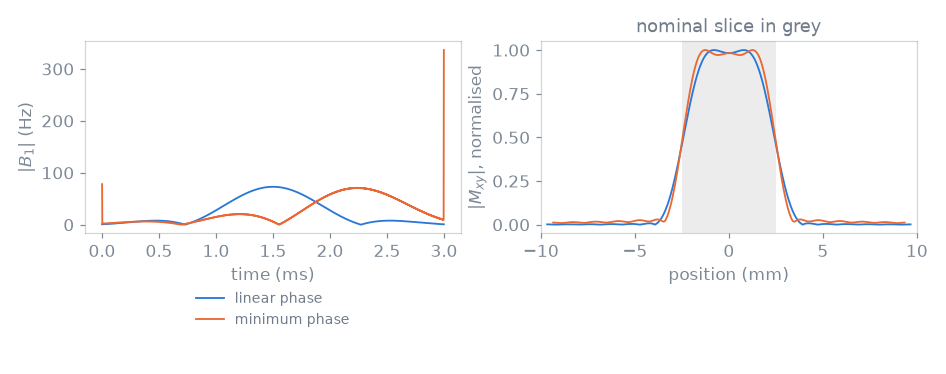

sim_rf simulates the pulse across off-resonance; dividing by the selection amplitude reads the result as a position.

designs = {}
for name, module in (("linear phase", linear_phase), ("minimum phase", minimum_phase)):
    _, mz_xy, frequency = module.sim_rf()[:3]
    designs[name] = {
        "time": module.rf.t,
        "envelope": np.abs(module.rf.signal),
        "position": frequency / module.selection_amplitude,
        "profile": np.abs(mz_xy) / np.abs(mz_xy).max(),
    }
    print(
        f"{name}: peak B1 {np.abs(module.rf.signal).max():.0f} Hz, "
        f"slice {module.slice_thickness * 1e3:.2f} mm"
    )

linear phase: peak B1 73 Hz, slice 4.83 mm
minimum phase: peak B1 336 Hz, slice 4.87 mm

Echo time

A readout module takes the pulse, its selection gradient and its rephaser, and measures the echo time from the pulse’s effective centre. Applying the same readout to each excitation isolates the resulting difference in echo time.

readouts = {
    name: design.LineReadout2D(
        system,
        module.rf,
        module.gz,
        module.gz_reph,
        fov=(220e-3, 220e-3),
        matrix=(192, 192),
        te=None,
        tr=None,
    )
    for name, module in (
        ("linear phase", linear_phase),
        ("minimum phase", minimum_phase),
    )
}
for name, readout in readouts.items():
    print(
        f"{name}: shortest TE {readout.echo_time * 1e3:.3f} ms, "
        f"repetition {readout.duration * 1e3:.3f} ms"
    )

linear phase: shortest TE 3.160 ms, repetition 6.360 ms
minimum phase: shortest TE 1.660 ms, repetition 6.360 ms

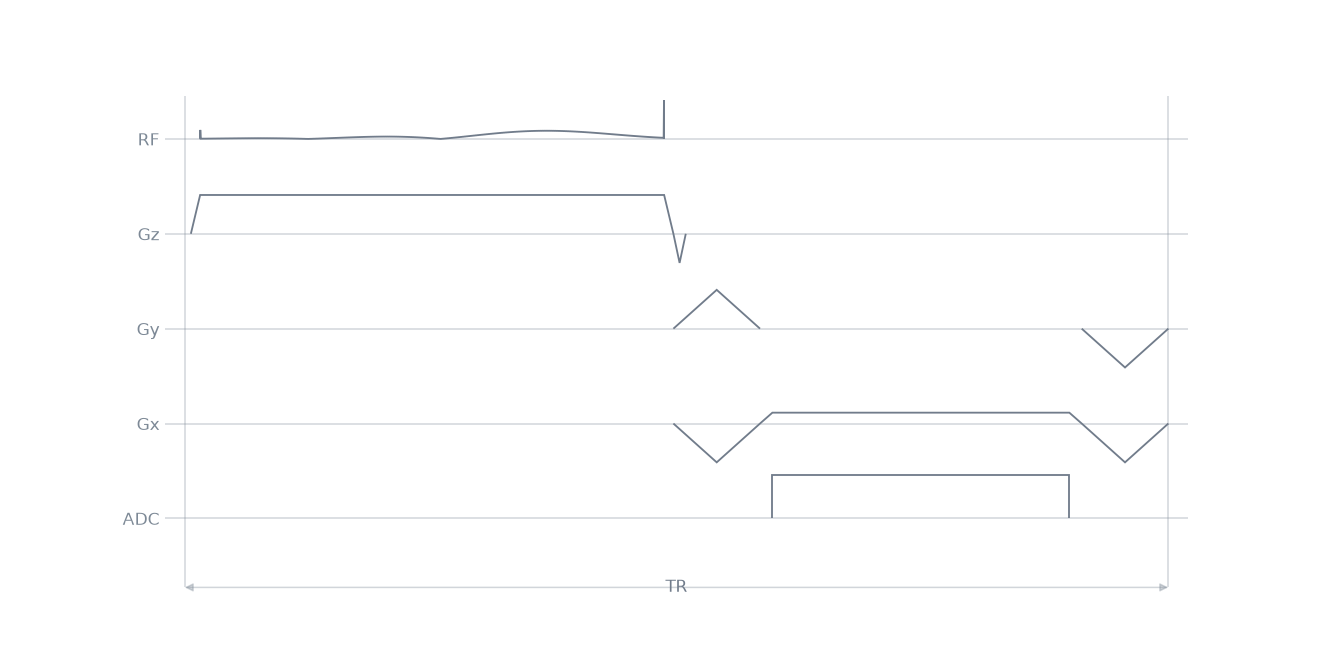

One repetition of the short-TE design.

seq = pp.Sequence(system=system)
for block in readouts["minimum phase"].blocks:
    seq.add_block(*block)
seq.paper_plot(tr=1)
