Sequence analysis

TL;DR

• Waveforms, k-space, repetition and RF power are read from the stored blocks, after each block’s rotation.

• Two integrals of the gradients exist: an unbroken one for shift phases, and one reset at excitation for echoes.

• A field-of-view transform changes the sequence itself, so every later analysis sees it.

Before you write a file you want to know what the scanner will play: where each ADC sample lands in k-space, when the echo forms, how long a repetition is, how much RF it carries. These are computed from the sequence you built, as in lessons 2 and 5 of the Course, and they follow the rotations and the prescription the sequence holds.

Capabilities

• Expands the blocks into gradient waveforms, RF timing and ADC sample times.

  Show code and tests

  Code: waveforms_and_times(), adc_times(), rf_times(). Tests: the gradient waveforms are the toolboxs; a range of blocks expands as the toolbox expands it; a trapezoid is its four corners (test_waveforms.py).

• Applies each block’s rotation to the waveforms, and reports every RF use.

  Show code and tests

  Code: compat=False of waveforms_and_times(). Tests: a quarter turn about z moves the readout onto the other axis; every use a pulse can have is reported (test_waveforms.py).

• Integrates the gradients to the k-space position of every ADC sample.

  Show code and tests

  Code: calculate_kspace(), adc_kspace(). Tests: the trajectory is the toolboxs; there is one sample position per sample; the adc kspace is where calculate kspace puts the samples (test_kspace.py).

• Resets the trajectory at an excitation and inverts it at a refocusing pulse.

  Show code and tests

  Code: calculate_kspace(). Tests: an excitation puts the trajectory back at the origin; a refocusing turns the trajectory around (test_kspace.py).

• Finds where each readout passes nearest the centre of k-space.

  Show code and tests

  Code: adc_echoes(). Tests: a readout sweeps k from where the prewinder left it; a stepped phase encode moves the line it reads (test_kspace.py).

• Places a run of readouts as the whole sequence does, without integrating the rest.

  Show code and tests

  Code: readouts= of adc_kspace(). Tests: each readout is where the whole sequence puts it; a run of readouts is the columns they hold in the whole trajectory (test_readout_kspace.py).

• Finds the repetition, and takes a declared TRSize the blocks agree with.

  Show code and tests

  Code: repetition(). Tests: a scan repeats at the length of one shot; a phase encode does not make a shot different; a declared TR the blocks contradict is ignored (test_repetition.py).

• Reads the repetition from the block definitions, so a changed amplitude does not break it.

  Show code and tests

  Code: repetition(). Tests: shots that differ only in their waveforms repeat by structure; the repeat survives a rotation; adding a block makes the answer stale (test_repetition.py).

• Reports RF energy, peak and mean power and RMS B1, with dynamic pTx channels added in power.

  Show code and tests

  Code: calc_rf_power(), calc_rf_power(). Tests: ptx channels add their powers and never cancel; the sequence power sums its pulses; a window keeps its loudest stretch (test_rf_power.py).

• Scales, translates and rotates the field of view of a finished sequence.

  Show code and tests

  Code: TransformFOV. Tests: a quarter turn about z sends x onto y; a second prescription turns what the first left; scaling an axis scales what it draws (test_transform_fov.py).

• Keeps a rotation as an annotation, so a thousand orientations share one waveform.

  Show code and tests

  Code: TransformFOV. Tests: a rotation is an annotation and not a new waveform; baking the rotation into the waveforms is refused (test_transform_fov.py).

• Moves RF and ADC phases by the translation, from the gradient area swept so far.

  Show code and tests

  Code: translation= of TransformFOV. Tests: a readout is acquired at the phase the shift asks for; a scan shifted across threads matches it shifted in short ranges; two identical repetitions read at the same phase (test_transform_fov.py, test_fov_shift.py).

• Draws the sequence, its ADC samples in k-space and its RF profiles.

  Show code and tests

  Code: plot(), paper_plot(), plot_kspace(), plot_rf(). Tests: none beyond the examples that draw them.

Division of responsibility

• Segments the repetition into its intermediate representation. It reads repetition() and requires it to start at block 1.

• Applies the field-of-view offset a prescription carries. It calls TransformFOV with through_rotation=True, and counts the gradient area on from the end of the file before.

• Fills the readout table. It reads adc_echoes() for each readout’s start and path.

Method

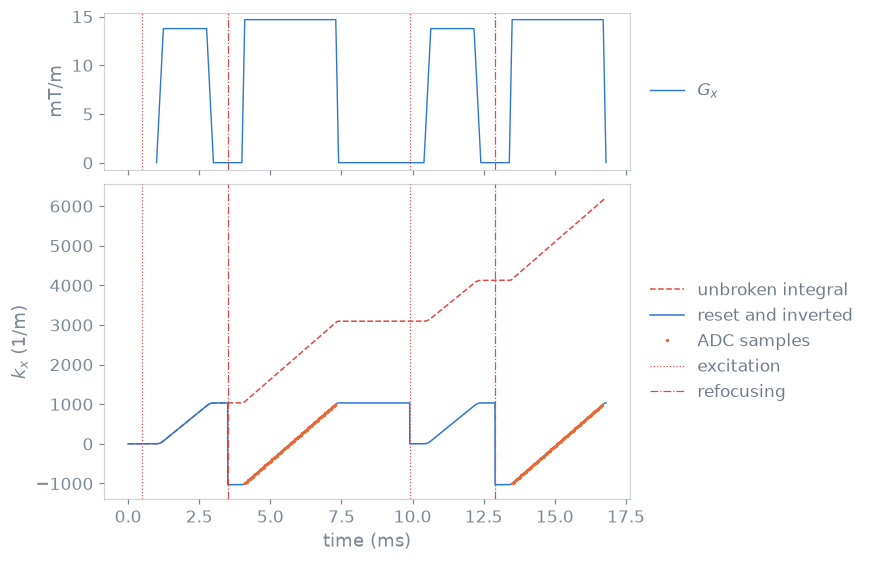

Two spin-echo shots with an unbalanced readout. The unbroken gradient integral (dashed) keeps growing; the excitation-aware trajectory (solid) restarts at each excitation, is inverted by the refocusing pulse, and crosses zero in the middle of the readout, where the ADC samples (dots) are placed.

Gradient integrals

The unbroken integral is the reference of the RF and ADC shift phases: a translation moves a pulse or a readout by the area the gradients have swept since the start, whatever the pulses did. The echo anchor needs the other one, the position of the magnetisation in k-space, which an excitation resets and a refocusing pulse inverts. TransformFOV carries both across consecutive ranges as swept_k and block_k_origin.

Field-of-view transform frames

A translation is in metres along the channel axes, or along the logical axes with through_rotation. A prescription rotation is composed after the rotation each block already holds. The phase of an RF shape is stored in cycles, ADC modulation and phase offsets in radians.

Repetition detection

A repetition is the shortest period of the block definitions from block 1 that every later block repeats, so a phase-encode step or a spoke angle does not break it. A slice with its own preparation and dummy shots is one repetition, and a block played once makes the whole sequence one.

The units, the search and the translation algorithm are in Sequence-analysis computations.

Examples

• 2. Echo and repetition time: the echo time measured from the k-space trajectory, and the repetition drawn.

• 5. Radial sampling and gradient surgery: the trajectory of a radial acquisition.

• Sequence and system limits, Plotting: the container, the transform and the figures.
