Sequence modules and functions

TL;DR

• A sequence module designs one reusable part of a repetition and reports its blocks, its duration and a timing reference, center.

• A sequence function sequence(system, **protocol) is a complete acquisition; its protocol is read from its signature and docstring.

• Scripts, the command line and a protocol editor all drive the same function.

A gradient-echo, an MPRAGE and a stack-of-stars share their excitations, inversions and readouts. pypulseqpp designs each part once, as a module, and leaves the loop over views to a function you write. Neither is part of the file format: what they produce is an ordinary .seq file. Which views are acquired, and in what order, is the subject of Sampling and ordering.

Capabilities

• Designs a reusable part of a repetition and publishes its events by name.

  Show code and tests

  Code: SequenceModule, RfModule. Tests: an event played many times is published once; blocks are the published events in play order; publication reaches every init module in the chain (test_design_module.py).

• Reports the module’s blocks, duration and center, so that the loop can place it in time.

  Show code and tests

  Code: blocks, duration, center. Tests: duration and center describe the module (test_design_module.py); the echo time is measured between the outer pulse centres (test_design_preparation.py).

• Lets the loop change a published event before it is added to a block.

  Show code and tests

  Code: module.events, module.rf. Test: mutating a published event shows through the blocks (test_design_module.py).

• Ships excitation, preparation and readout modules for the sequence catalogue.

  Show code and tests

  Code: SpatialSelectiveExcitation, InversionPreparation, T2Preparation, RadialStackReadout; the others are listed in Sequence modules. Tests: every shipped module documents exactly the parameters it takes; a module reports the arguments of its init module (test_design_module.py).

• Refuses a module that adds no blocks, or that builds an upstream Sequence.

  Show code and tests

  Code: SequenceModule.init_module. Tests: an incomplete module is refused; an upstream sequence is refused (test_design_module.py).

• Answers the module’s analyses from its stored sequence.

  Show code and tests

  Code: module.check_timing, module.calculate_kspace, module.waveforms_and_times, module.paper_plot. Test: analyses are answered by the inner sequence (test_design_module.py).

• Reads a sequence function’s protocol from its signature and NumPy Parameters section.

  Show code and tests

  Code: parameters(), ProtocolParameter. Tests: the system is not a protocol parameter; a parameter carries its type, default, unit and description; the choices of a parameter are the values its type lists in order (test_sequence_function.py).

• Requires every shipped function to take the system first, state its limits and lower, never raise, the system’s.

  Show code and tests

  Code: cap_system(), MAX_GRAD, MAX_SLEW. Tests: a function takes the system first and the protocol as keywords; a function states the limits it holds the system to; a function lowers the system to its limits and never raises it (test_examples.py).

• Writes only the label events a block changes, as a SET or an INC.

  Show code and tests

  Code: Labels, evaluate_labels(). Tests: a block carries only the label events it changes; a restart writes every label again as a set (test_sequence_function.py); the answer is the toolbox’s (test_evaluate_labels.py).

• Writes a list of sequences, prescans first, as files linked by NextSequence.

  Show code and tests

  Code: write(), duration(). Tests: a chain is written with next sequence links; a chain whose names repeat writes one file per sequence; a link is recorded in the files and not on the sequences; duration sums the chain (test_sequence_function.py).

• Derives command-line options and help from the same signature.

  Show code and tests

  Code: pypulseqpp.cli.run(). Tests: cli flags come from a function signature; the cli writes a function chain; the cli reports every sequence a function returns (test_sequence_function.py).

• Designs a complete sequence for each family of the catalogue, with a reference page each.

  Show code and tests

  Code: Sequence catalogue. Tests: the catalogue classifies every shipped sequence exactly once; every sequence has a gallery page that designs it (test_docs_sequences.py); every sequence a zoo entry builds passes its timing check (test_examples.py).

• Refuses a prescription the design cannot meet, and records what it designed.

  Show code and tests

  Code: the definitions a function sets, such as TE. Tests: a shorter echo than the readout admits is refused; a function designs the definitions it wrote again from them (test_examples.py).

Division of responsibility

• Builds its protocol editor from the same record. It calls parameters() on the function and shows each parameter with its unit, choices and description.

• Calls the function on the scanner with the scanner’s limits. The function is designed under the Opts the scanner sends; segmentation and execution are Pulserver’s.

Method

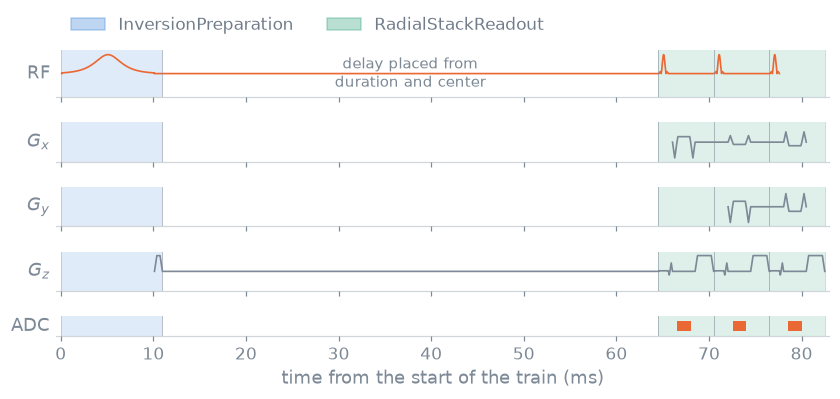

One inversion and the start of its radial train, built from lesson 9’s modules. The loop adds inversion.blocks, a delay, and readout.blocks once per spoke, the readout’s blocks opening with the excitation; each module’s RF is drawn to its own peak.

Module timing reference

center is the module’s timing reference in seconds from its start, usually an RF pulse centre or an echo. For an inversion module followed by an excitation module, the delay that gives an inversion time \(T_I\) is

\[ t_{\mathrm{delay}} = T_I - (t_{\mathrm{inv}} - t_{\mathrm{centre,inv}}) - t_{\mathrm{centre,exc}}, \]

so the timing composes through pulse centres and does not depend on where the blocks begin or end.

Event templates

A published event is a template: the loop sets an RF phase offset or scales a phase-encode gradient on it, and adds the blocks. Blocks already added to a sequence are not changed. A readout built with te=None takes its shortest realizable echo time, and the module reports the bandwidths and times it achieved after rounding them to the rasters.

Sequence chains

Each file of a chain keeps one period for repetition() and the analyses built on it, while NextSequence joins the files into one acquisition. The files are named as write() describes.

The rules, the naming of chain files and the parsing of the protocol are in Sequence module and function internals.

Examples

• 8. Sequence functions: the radial MPRAGE as a function, its protocol and its command line.

• 9. Sequence modules: the same function built from three modules.

• 10. Custom sequence module: a module of your own.

• Sequence catalogue: the catalogue of shipped sequence functions.

• Sequence modules, Sequence functions and Command-line helpers: the objects.
