9. Sequence modules

Most of your MPRAGE function designs events: the inversion and its crusher, the slab-selective pulse, the merged readout, the partition encodings. The same parts appear in many sequences, and pypulseqpp ships them as sequence modules. A module designs one part of the repetition from a few physical parameters, publishes its events under fixed names, lays them out in blocks, and tells you its timing. The loop stays yours.

In this lesson you rebuild the MPRAGE with three modules: an inversion, a slab excitation and a stack-of-stars readout. Your sequence function shrinks to its protocol and its loop.

Learning objectives

• Design the inversion, the excitation and the readout with InversionPreparation, SpatialSelectiveExcitation and RadialStackReadout.

• Read a module’s events, its blocks, its duration and its center, and place the inversion time from them.

• Turn each spoke with a rotation extension instead of a rotated copy of the readout.

Previous: 8. Sequence functions. Next: 10. Custom sequence module, where you write a module of your own.

Modules

Each module takes the scanner first, then what it needs to know: the inversion its crusher’s voxel, the excitation its flip angle and slab, and the readout the pulse it follows, the field of view and the matrix in plane and along z. is_slab=True folds the slab rephaser into the selection gradient, and spoiling_cycles leaves the readout’s spoiler on z.

import numpy as np

import pypulseqpp as pp
from pypulseqpp import sequences

system = pp.Opts(
    max_grad=32.0,
    grad_unit="mT/m",
    max_slew=130.0,
    slew_unit="T/m/s",
    rf_dead_time=100e-6,
    rf_ringdown_time=20e-6,
    adc_dead_time=10e-6,
)

inversion = sequences.InversionPreparation(system, voxel_size_m=5e-3)
excitation = sequences.SpatialSelectiveExcitation(
    system, 8.0, 80e-3, duration_s=1e-3, is_slab=True
)
readout = sequences.RadialStackReadout(
    system,
    excitation.rf,
    excitation.gz,
    fov=220e-3,
    matrix=128,
    fov_z=80e-3,
    matrix_z=16,
    readout_bandwidth_hz=100e3,
    spoiling_cycles=4.0,
)

Module interface

A module publishes its events as attributes, and lays them out in blocks, the blocks you add to your sequence in order. duration is the length of the layout and center the instant the rest of the sequence is timed against: the centre of the pulse for the inversion and the excitation, the echo for the readout.

for name, module in [
    ("inversion", inversion),
    ("excitation", excitation),
    ("readout", readout),
]:
    print(
        f"{name:10} events {', '.join(sorted(vars(module.events))):45} "
        f"{len(module.blocks)} blocks, {1e3 * module.duration:5.2f} ms, "
        f"center at {1e3 * module.center:5.2f} ms"
    )

inversion  events gz_spoil, rf_prep                             2 blocks, 10.98 ms, center at  5.10 ms
excitation events gz, rf                                        1 blocks,  1.28 ms, center at  0.60 ms
readout    events adc, gx, gy, gz, gz_pre, gz_rew, gz_spoil, rf 4 blocks,  6.00 ms, center at  2.78 ms

The readout’s blocks open with the pulse it was given, so one spoke of your train is exactly readout.blocks: the excitation, the partition encoding gz_pre, the readout with its ADC, and the partition rewinder with the spoiler. It also reports what it achieved:

print(
    f"TE {1e3 * readout.echo_time:.2f} ms, spoke TR {1e3 * readout.duration:.2f} ms, "
    f"bandwidth {readout.bandwidth_hz / 1e3:.0f} kHz"
)

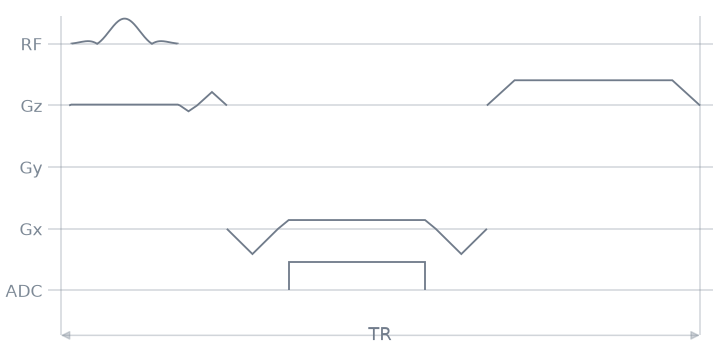

readout.paper_plot()

TE 2.18 ms, spoke TR 6.00 ms, bandwidth 100 kHz

gz_pre and gz_rew encode the outermost partition. You scale them to each partition with scale_grad(), as you scaled the phase encoding in lesson 1.

Rotation extension

In lesson 6 you rotated the readout gradient with rotate(), which makes a new pair of x and y gradients for every angle. A rotation extension, make_rotation(), does it differently: you add it to the block, and the scanner rotates the block’s gradients as it plays them. The readout stays one waveform in the file, whatever the number of spokes.

Sequence function

The function from lesson 8, with the modules in place of the design. The inversion time is placed from the modules’ center: from the inversion’s centre to the end of its layout, then the wait, then the excitation up to its centre.

def radial_mprage(
    system: pp.Opts,
    *,
    fov: float = 220e-3,
    matrix: int = 128,
    partitions: int = 16,
    partition_thickness: float = 5e-3,
    spokes_per_train: int = 64,
    flip_angle_deg: float = 8.0,
    ti: float = 900e-3,
    tr: float = 2.5,
) -> pp.Sequence:
    """3D radial MPRAGE on a stack of stars, one partition per inversion.

    Parameters
    ----------
    fov : float, default=0.22
        In-plane field of view (m).
    matrix : int, default=128
        In-plane matrix size.
    partitions : int, default=16
        Number of partitions.
    partition_thickness : float, default=0.005
        Thickness of one partition (m).
    spokes_per_train : int, default=64
        Golden-angle spokes played after each inversion.
    flip_angle_deg : float, default=8.0
        Readout flip angle (degrees).
    ti : float, default=0.9
        Inversion time (s), from the inversion centre to the first excitation.
    tr : float, default=2.5
        Time between two inversions (s).

    Raises
    ------
    ValueError
        If the train does not fit between TI and the next inversion.
    """
    slab = partitions * partition_thickness
    inversion = sequences.InversionPreparation(system, voxel_size_m=partition_thickness)
    excitation = sequences.SpatialSelectiveExcitation(
        system, flip_angle_deg, slab, duration_s=1e-3, is_slab=True
    )
    readout = sequences.RadialStackReadout(
        system,
        excitation.rf,
        excitation.gz,
        fov=fov,
        matrix=matrix,
        fov_z=slab,
        matrix_z=partitions,
        readout_bandwidth_hz=100e3,
        spoiling_cycles=4.0,
    )
    pulse, _, read, _ = readout.blocks

    steps = (np.arange(partitions) - partitions // 2) / (partitions / 2)
    gz_encode = [pp.scale_grad(readout.gz_pre, step) for step in steps]
    gz_rewind = [pp.scale_grad(readout.gz_rew, step) for step in steps]

    raster = system.block_duration_raster
    ti_wait = pp.round_to_raster(
        ti - (inversion.duration - inversion.center) - excitation.center, raster
    )
    if ti_wait < raster:
        raise ValueError(f"TI of {1e3 * ti:.1f} ms is shorter than the inversion")
    played = inversion.duration + ti_wait + spokes_per_train * readout.duration
    recovery = pp.round_to_raster(tr - played, raster)
    if recovery < raster:
        raise ValueError(
            f"TR of {1e3 * tr:.0f} ms is shorter than the "
            f"{1e3 * (played + raster):.0f} ms one inversion takes"
        )
    wait_ti, wait_recovery = pp.make_delay(ti_wait), pp.make_delay(recovery)

    golden_angle = np.pi * (3 - np.sqrt(5)) / 2
    angles = (np.arange(partitions * spokes_per_train) * golden_angle) % np.pi
    rotations = [pp.make_rotation(angle) for angle in angles]
    phases = pp.make_rf_spoiling_schedule(
        partitions * spokes_per_train, increment=np.deg2rad(117.0)
    )

    seq = pp.Sequence(system)
    labels = sequences.Labels()
    n = 0
    for partition in range(partitions):
        for block in inversion.blocks:
            seq.add_block(*block)
        seq.add_block(wait_ti)
        for spoke in range(spokes_per_train):
            readout.rf.phase_offset = readout.adc.phase_offset = phases[n]
            seq.add_block(*pulse, *labels(LIN=spoke, PAR=partition))
            seq.add_block(gz_encode[partition])
            seq.add_block(*read, rotations[n])
            seq.add_block(gz_rewind[partition], readout.gz_spoil)
            n += 1
        seq.add_block(wait_recovery)

    seq.set_definition("Name", "radial_mprage")
    seq.set_definition("FOV", [fov, fov, slab])
    seq.set_definition("Matrix", [matrix, matrix, partitions])
    seq.set_definition("TI", ti)
    seq.set_definition("TR", tr)
    return seq

The design is now three module calls and two lists of partition gradients, and what remains is what makes this sequence an MPRAGE: the order of the blocks, the inversion time, and how the spokes and the partitions are walked.

seq = radial_mprage(system)
ok, errors = seq.check_timing()
print(f"timing ok: {ok}, scan time {seq.duration()[0]:.1f} s")

start = inversion.duration + pp.round_to_raster(
    0.9 - (inversion.duration - inversion.center) - excitation.center,
    system.block_duration_raster,
)

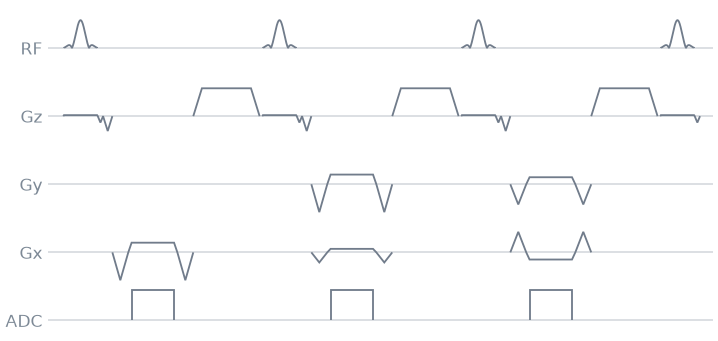

seq.paper_plot(time_range=(start, start + 3 * readout.duration))

timing ok: True, scan time 40.0 s

Shipped MPRAGE

The shipped mprage_stack_of_stars3D is this function grown to a full protocol: it chooses between three excitations, undersamples spokes and partitions, plays dummy shots and navigators, and writes the definitions a reconstruction reads. Its loop has the same shape as yours. Reading its source is the next step from here:

import inspect

print(inspect.getsource(sequences.mprage_stack_of_stars3D_sequence))

Specification

What this lesson built, stated the way you would ask an agent for it:

Rewrite the lesson-8 radial_mprage sequence function with pypulseqpp
sequence modules: InversionPreparation for the inversion and crusher,
SpatialSelectiveExcitation(is_slab=True) for the 1 ms slab pulse, and
RadialStackReadout (100 kHz, spoiling_cycles=4) for the spokes. Play
the readout's blocks per spoke with gz_pre and gz_rew scaled to the
partition, turn each spoke with a make_rotation extension at the
golden angle, RF spoil with make_rf_spoiling_schedule, and place TI
from the modules' duration and center.
