Minimum-phase excitation

The shipped excitation modules design linear-phase SLR pulses, whose energy is symmetric about the middle of the pulse. A minimum-phase design concentrates RF energy near the end of the waveform, so that at a fixed duration and time-bandwidth product the interval from the pulse to the echo is shorter. The peak \(B_1\) is larger, and the phase of the slice profile is not linear.

In this Tour you write an excitation module for the minimum-phase design, and compare its envelope, slice profile and peak \(B_1\) with the shipped linear-phase module. You then play both in front of the same readout and read the shortest echo time each reaches.

Prerequisites: lessons 1 and 10 of the course. Lesson 10 writes a custom module, a T2 preparation, by subclassing RfModule; this Tour uses the same interface.

The module concept, and the events a module publishes, are described in Sequence modules and functions.

Excitation module

The module follows the structure you wrote in lesson 10: init_module builds self.seq and sets self.center, and the events bound to its local variables are published under those names. Subclassing RfModule also gives the module sim_rf(), which simulates its pulse against off-resonance.

What differs is the pulse. make_slr_pulse() designs it with filter_type="min". Its center_pos places the effective RF centre as a fraction of the duration, and that sets both the area of the rephaser the function returns and the instant a readout module measures its echo time from. A minimum-phase pulse is used at center_pos=1.0, its own end.

import numpy as np

import pypulseqpp as pp
from pypulseqpp import sequences


class MinimumPhaseExcitation(sequences.RfModule):
    """Slice-selective excitation whose energy is concentrated at its end.

    Parameters
    ----------
    system : pypulseqpp.Opts
        System limits.
    flip_angle_deg : float
        Nominal flip angle (degrees).
    thickness_m : float
        Slice thickness (m).
    duration_s : float, optional
        Pulse duration (s).
    time_bw_product : float, optional
        Time-bandwidth product of the SLR sequences.
    center_pos : float, optional
        Effective centre of the pulse, as a fraction of its duration.
    axis : {'z', 'x', 'y'}, optional
        Selection axis.

    Attributes
    ----------
    rf : RfEvent
        The pulse.
    gz : GradEvent
        Its selection gradient.
    gz_reph : GradEvent
        The rephaser that unwinds the selection played after the effective
        centre.
    selection_amplitude : float
        Selection gradient amplitude (Hz/m).
    slice_thickness : float
        Thickness the pulse and its selection gradient produce (m): the
        pulse's measured bandwidth over the gradient amplitude.
    """

    def init_module(
        self,
        system: pp.Opts,
        flip_angle_deg: float,
        thickness_m: float,
        duration_s: float = 3e-3,
        *,
        time_bw_product: float = 4.0,
        center_pos: float = 1.0,
        axis: str = "z",
    ) -> None:
        rf, gz, gz_reph = pp.make_slr_pulse(
            np.deg2rad(flip_angle_deg),
            duration=duration_s,
            slice_thickness=thickness_m,
            time_bw_product=time_bw_product,
            filter_type="min",
            center_pos=center_pos,
            return_gz=True,
            use="excitation",
            system=system,
        )
        gz.channel = axis
        gz_reph.channel = axis

        self.seq = pp.Sequence(system)
        self.seq.add_block(rf, gz)
        self.seq.add_block(gz_reph)

        self.center = float(rf.delay) + float(rf.center)
        self.selection_amplitude = float(gz.amplitude)
        self.slice_thickness = float(pp.calc_rf_bandwidth(rf) / abs(gz.amplitude))

Linear and minimum phase

The two modules take the same flip angle, slice thickness and duration. The printout lists the events a module publishes and, for each design, where the effective RF centre falls and how large the rephaser is:

system = pp.Opts(
    max_grad=40.0,
    grad_unit="mT/m",
    max_slew=150.0,
    slew_unit="T/m/s",
    rf_dead_time=100e-6,
    rf_ringdown_time=30e-6,
    adc_dead_time=10e-6,
)

FLIP_ANGLE_DEG = 20.0
THICKNESS_M = 5e-3
DURATION_S = 3e-3

minimum_phase = MinimumPhaseExcitation(system, FLIP_ANGLE_DEG, THICKNESS_M, DURATION_S)
linear_phase = sequences.SpatialSelectiveExcitation(
    system, FLIP_ANGLE_DEG, THICKNESS_M, DURATION_S
)

print("events:", ", ".join(sorted(vars(minimum_phase.events))))
for name, module in (("linear", linear_phase), ("minimum", minimum_phase)):
    print(
        f"{name}-phase: center at {module.center * 1e3:.3f} ms of "
        f"{module.duration * 1e3:.3f} ms, rephaser area "
        f"{module.gz_reph.area:.1f} 1/m"
    )

events: gz, gz_reph, rf
linear-phase: center at 1.600 ms of 3.680 ms, rephaser area -394.4 1/m
minimum-phase: center at 3.100 ms of 3.240 ms, rephaser area -8.0 1/m

The rephaser compensates the slice-selection moment accumulated after the effective RF centre. At center_pos=1.0 that moment is the fall ramp alone, so the rephaser block has its minimum duration and the pulse ends a gradient raster period or two before the encoding starts.

Pulse envelope and slice profile

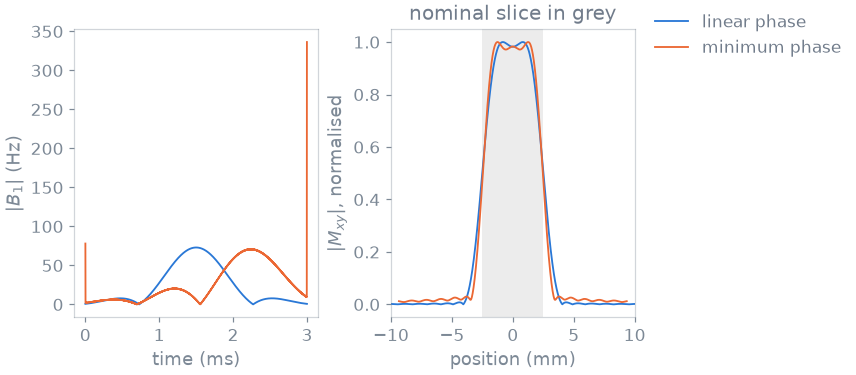

sim_rf simulates the pulse across off-resonance; dividing the frequency by the selection amplitude reads the result as a position along the slice axis. The minimum-phase envelope rises towards the end of the pulse and its peak is several times that of the linear-phase pulse:

designs = {}
for name, module in (("linear phase", linear_phase), ("minimum phase", minimum_phase)):
    _, mz_xy, frequency = module.sim_rf()[:3]
    designs[name] = {
        "time": module.rf.t,
        "envelope": np.abs(module.rf.signal),
        "position": frequency / module.selection_amplitude,
        "profile": np.abs(mz_xy) / np.abs(mz_xy).max(),
    }
    print(
        f"{name}: peak B1 {np.abs(module.rf.signal).max():.0f} Hz, "
        f"slice {module.slice_thickness * 1e3:.2f} mm"
    )

linear phase: peak B1 73 Hz, slice 5.00 mm
minimum phase: peak B1 336 Hz, slice 4.87 mm

Echo time

A readout module takes the pulse, its selection gradient and its rephaser, and measures the echo time from the pulse’s effective centre. Applying the same readout to each excitation isolates the difference in echo time that the excitation causes. te=None asks for the shortest echo time the readout reaches, and tr=None for the shortest repetition.

readouts = {
    name: sequences.LineReadout2D(
        system,
        module.rf,
        module.gz,
        module.gz_reph,
        fov=(220e-3, 220e-3),
        matrix=(192, 192),
        te=None,
        tr=None,
    )
    for name, module in (
        ("linear phase", linear_phase),
        ("minimum phase", minimum_phase),
    )
}
for name, readout in readouts.items():
    print(
        f"{name}: shortest TE {readout.echo_time * 1e3:.3f} ms, "
        f"repetition {readout.duration * 1e3:.3f} ms"
    )

linear phase: shortest TE 3.160 ms, repetition 6.360 ms
minimum phase: shortest TE 1.660 ms, repetition 6.360 ms

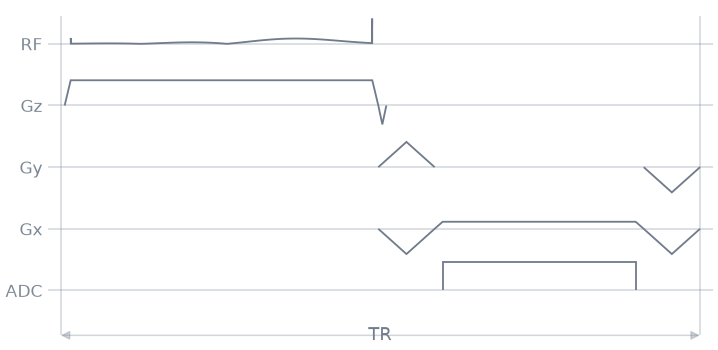

One repetition of the short-TE sequences.

seq = pp.Sequence(system=system)
for block in readouts["minimum phase"].blocks:
    seq.add_block(*block)
seq.paper_plot(tr=1)

Specification

What this Tour built, stated the way you would ask an agent for it:

Write a pypulseqpp RfModule MinimumPhaseExcitation(system,
flip_angle_deg, thickness_m, duration_s=3e-3, time_bw_product=4,
center_pos=1.0, axis="z") that designs its pulse with
make_slr_pulse(filter_type="min", center_pos=center_pos,
return_gz=True, use="excitation"), plays the pulse with its
selection gradient and then the rephaser, sets center to the
effective RF centre, and reports the slice thickness from the
pulse bandwidth over the selection amplitude. For 40 mT/m and
150 T/m/s, 20 degrees, 5 mm and 3 ms, compare it with
sequences.SpatialSelectiveExcitation: the envelope, the simulated
slice profile against position, the peak B1, and the shortest echo
time of a 192x192 LineReadout2D (te=None, tr=None) behind each.
