Conventional 3D fast spin echo#
A slab-selective excitation is followed by a CPMG fast-spin-echo train of hard
refocusing pulses, with one Cartesian (line, partition) view acquired at
each echo.
Refocusing angles below 180 degrees add stimulated-echo pathways to the echo
signal [HEN88], and variable refocusing angles modulate the T2-dependent
signal evolution along the train [BUS08a]. Radial view ordering maps this
evolution onto the (k_y, k_z) plane and therefore determines the
modulation transfer function and image blurring [BUS08a]. 3D FSE is used for
T2- and proton-density-weighted structural imaging.
from pypulseqpp import sequences
DIAGRAM = {
"n_x": 64,
"n_y": 24,
"n_z": 8,
"fov_x": 0.20,
"fov_y": 0.20,
"fov_z": 0.12,
"etl": 6,
"te": None,
"tr": None,
"n_dummy": 0,
"ordering": "radial",
"flip_modulation": "optimized",
"wave_amplitude": 0.0,
}
diagram = sequences.fse3D_sequence(**DIAGRAM)
ANALYSIS = {
"n_x": 96,
"n_y": 64,
"n_z": 20,
"fov_x": 0.20,
"fov_y": 0.20,
"fov_z": 0.12,
"etl": 48,
"te": 120e-3,
"tr": 1.2,
"n_dummy": 0,
"ordering": "radial",
"flip_modulation": "optimized",
"wave_amplitude": 0.0,
}
seq = sequences.fse3D_sequence(**ANALYSIS)
esp = seq.get_definition("EchoSpacing")[0]
print(
f"{int(seq.get_definition('NumShots')[0])} shots; {esp * 1e3:.2f} ms echo "
f"spacing; {seq.get_definition('TE')[0] * 1e3:.1f} ms effective TE"
)
21 shots; 3.48 ms echo spacing; 118.3 ms effective TE

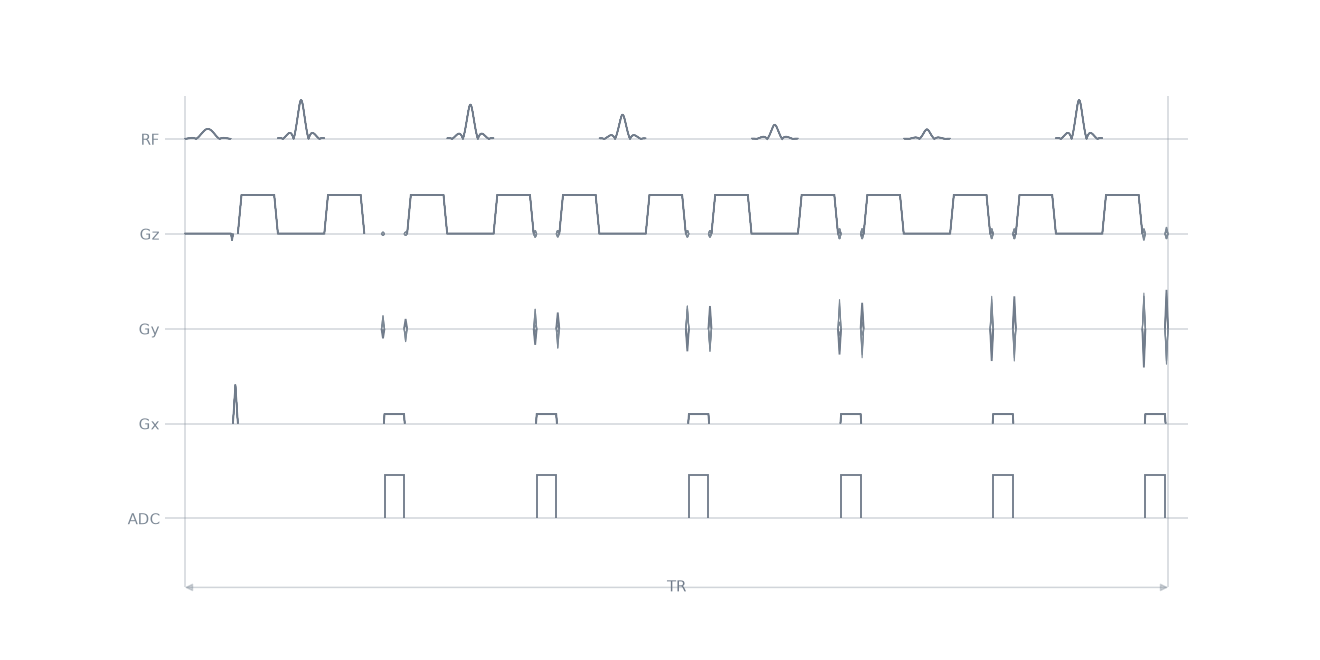

Sequence diagram#
Each echo comprises a variable-angle refocusing pulse, phase and partition prephasing, one frequency-encoded ADC event, and rephasing, whose tail plays in the next refocusing pulse’s dead time. The read prephaser shares the excitation block; where it and the excitation take more than half an echo spacing, the first interval alone is longer, and its refocusing pulse is 180 degrees. The effective TE is the echo assigned to k-space centre.

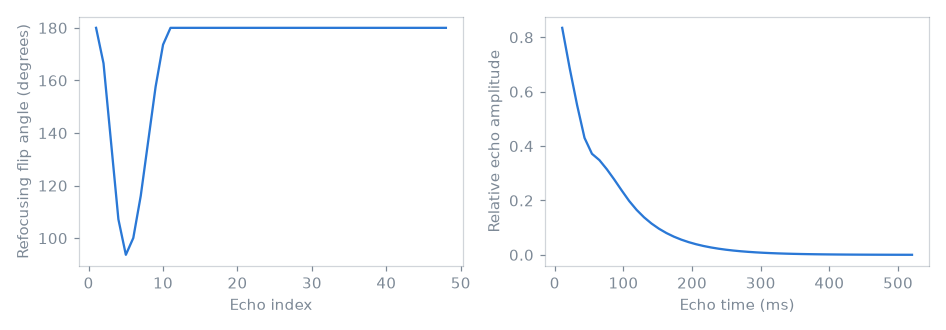

Refocusing schedule and echo signal#
The refocusing schedule has the form of [BUS08a] after a first pulse of 180
degrees: the angle decreases from the prescribed angle to a minimum over the
first five echoes, increases to
the prescribed angle at the effective-TE echo and holds it to the end of the
train. The prescribed angle is the peak of the schedule. The minimum angle,
bounded by the prescribed angle, is optimized with the extended phase graph
(EPG) FSE simulator of blochsim [HEN88] [WEI15].
The cost combines an echo-to-echo signal-variation measure of blurring, the
contrast between two of the sequence’s design tissues at the effective-TE
echo, and a penalty on RF power above that of the initial schedule. The same
simulator evaluates the resulting T2-dependent echo envelope.
import blochsim
angles = np.asarray(seq.get_definition("RefocusingFlipAngles"))
signal = np.abs(
np.asarray(blochsim.fse_sim(flip=angles, ESP=esp * 1e3, T1=1200.0, T2=60.0))
)

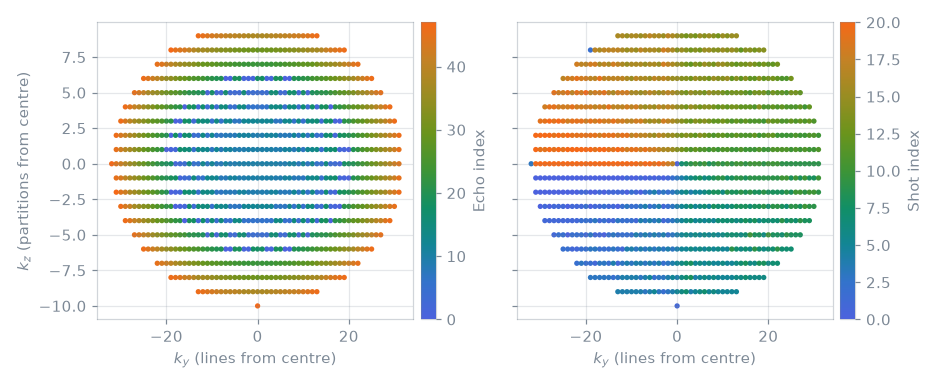

Echo and shot order#
Radial ordering [BUS08a] assigns views near k-space centre to the effective-TE echo and progressively larger radii to echoes farther from it. Echo index records position within a train; shot index identifies views acquired after the same excitation.

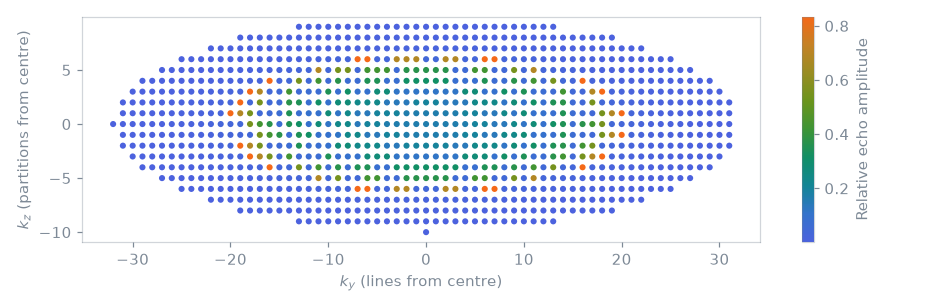

K-space weighting#
The echo envelope weights each acquired view according to its echo index. Radial assignment converts temporal signal evolution into a predominantly radial modulation transfer function; its Fourier transform contributes to image blurring along both phase-encode axes.

References#
Hennig J. Multiecho imaging sequences with low refocusing flip angles. Journal of Magnetic Resonance. 1988;78(3):397-407. https://doi.org/10.1016/0022-2364(88)90128-X
Weigel M. Extended phase graphs: dephasing, RF pulses, and echoes - pure and simple. Journal of Magnetic Resonance Imaging. 2015;41(2):266-295. https://doi.org/10.1002/jmri.24619
Busse RF, Brau ACS, Vu A, Michelich CR, Bayram E, Kijowski R, Reeder SB, Rowley HA. Effects of refocusing flip angle modulation and view ordering in 3D fast spin echo. Magnetic Resonance in Medicine. 2008;60(3):640-649. https://doi.org/10.1002/mrm.21680
