MoDL, on BART’s ADMM

This lesson trains an unrolled reconstruction network for undersampled Cartesian SENSE: a small convolutional denoiser placed in the proximal step of BART’s alternating-direction iteration, with the whole iteration trained end to end against fully sampled images. The aim is to show how a learned regularizer is combined with the physical encoding model – coil sensitivities, Fourier transform and sampling pattern – so that the network only has to remove what the data leave undetermined, and how such a network is trained with standard tools.

MoDL [1] writes a reconstruction as an alternation between a learned denoiser and a data-consistency step, and trains the denoiser through it. As published the alternation is half-quadratic splitting, which is

\[\begin{split}z^{k} &= D_w(x^{k}) \\ x^{k+1} &= \arg\min_x \; \|A x - y\|_2^2 + \lambda \|x - z^{k}\|_2^2,\end{split}\]

the second line a conjugate-gradient solve of \((A^H A + \lambda) x = A^H y + \lambda z^{k}\). The alternating direction method of multipliers [2] is the same splitting with a dual variable \(u\) carried along:

\[\begin{split}x^{k+1} &= \arg\min_x \; \|A x - y\|_2^2 + \rho \|x - z^{k} + u^{k}\|_2^2 \\ z^{k+1} &= D_w(x^{k+1} + u^{k}) \\ u^{k+1} &= u^{k} + x^{k+1} - z^{k+1},\end{split}\]

MoDL is therefore this iteration with \(u\) fixed at zero. The dual variable accumulates the mismatch between the data-consistent and the denoised iterate, so that a fixed point of the iteration solves the constrained problem rather than the penalized one.

The iteration itself is BART’s. bartorch.optim.ADMMBlock implements admm.c’s step, including the conjugate-gradient x-update that MoDL’s own implementation writes out, and bartorch.learning.Unrolled applies it repeatedly. The network supplies the proximal step, through bartorch.priors.ImplicitPrior; the penalty parameter \(\rho\) is a parameter of the block and is trained with the network’s weights.

Learning objectives

• Place a network in the proximal step of bartorch.optim.ADMMBlock through bartorch.priors.ImplicitPrior.

• Unroll the iteration with bartorch.learning.Unrolled and train it end to end with lightning.

• Reduce the memory of a deeper unrolled network by checkpointing or by per-iteration training.

It follows Plug-and-play denoisers, which used a pretrained denoiser without training. The next lesson, Networks for complex volumes, builds networks for complex multi-channel volumes.

import csv
from pathlib import Path

import brainweb_dl
import lightning
import numpy as np
import torch
import torchio
from brainweb_dl import get_mri
from monai.metrics import PSNRMetric, SSIMMetric
from torch.utils.data import DataLoader

import bartorch
import bartorch.tools as bt
from bartorch import learning, linop, optim, priors

SIZE = 128
COILS = 8
SLICES = 32  # axial slices taken from the volume
ITERATIONS = 5  # unrolled steps, MoDL's K
EPOCHS = 15

_ = torch.manual_seed(0)

Images

Axial slices of one BrainWeb subject, each converted into a \(T_1\)-weighted spin-echo image as in From k-space to image and given a smooth phase, so that no step below depends on the image being real. The slices are split into training and validation sets by position rather than at random: the first twenty-four slices train and the last eight validate.

One subject, twenty-four slices and a single sampling pattern constitute a phantom. The weights obtained below are not expected to generalize, and the page demonstrates the construction rather than a trained model.

train_images = images[:24]
valid_images = images[24:]

print(f"{len(train_images)} slices to train on, {len(valid_images)} to validate on")

24 slices to train on, 8 to validate on

Acquisition

Eight channels of BART’s analytical head coil, and a variable-density random undersampling of the phase encodes with a fully sampled k-space centre. The pattern is shared by every slice, so a single operator serves the whole dataset; a pattern that differs between items requires one operator per item.

ACCELERATION = 4
CENTRE = 8  # phase encodes always acquired

sensitivities = bt.coils(t=bt.grid(D=(SIZE, SIZE, 1)), n=COILS)[:, 0]
sensitivities = sensitivities / bartorch.rss(sensitivities, axes=(0,), keepdim=True)

density = torch.exp(-0.5 * ((torch.arange(SIZE) - SIZE / 2) / (SIZE / 6)) ** 2)
density = density / density.sum() * (SIZE / ACCELERATION)
lines = torch.rand(SIZE, generator=torch.Generator().manual_seed(1)) < density
lines[SIZE // 2 - CENTRE // 2 : SIZE // 2 + CENTRE // 2] = True
pattern = lines.to(torch.complex64)[:, None].expand(SIZE, SIZE).contiguous()

A = linop.CartesianSense(sensitivities, (SIZE, SIZE), pattern=pattern)

print(f"{int(lines.sum())} of {SIZE} phase encodes, {SIZE / int(lines.sum()):.1f}-fold")
print(f"A: {A.ishape} -> {A.oshape}")

34 of 128 phase encodes, 3.8-fold
A: (128, 128) -> (8, 128, 128)

The measured k-space of a slice is \(A x\) with additive complex Gaussian noise. An operator is constructed for a single image, so a batch is applied item by item; the iteration blocks in bartorch.optim do the same internally, and the network below therefore accepts a batch where the operator does not.

NOISE = 0.005


def measure(images, generator=None):
    """Simulate k-space for each image, with the adjoint reconstruction to start from."""
    x = torch.stack(list(images))
    y = torch.stack([A(item) for item in x])
    y = y + NOISE * torch.randn(y.shape, dtype=torch.complex64, generator=generator)
    return x, y, torch.stack([A.H(item) for item in y])

Dataset

torchio holds the images and augments them. Its ScalarImage requires a real tensor of shape (channels, width, height, depth); bartorch.learning.as_real() and as_complex() convert between that layout and a complex image, the real and imaginary parts becoming the two channels and a slice a volume one voxel deep.

Augmentation is the reason to prefer it to a plain list. A transform is drawn per subject and applied to every image of that subject, so an image and anything that must remain registered with it – coil sensitivities, parameter maps – are transformed consistently. Here each subject holds one image, and the transform is a flip and a rotation of at most eight degrees, which preserve the tissue statistics the denoiser is trained on while varying the orientation.

augmentation = torchio.Compose(
    [
        torchio.RandomFlip(axes=(0,), flip_probability=0.5),
        torchio.RandomAffine(scales=0, degrees=(0, 0, 0, 0, -8, 8), translation=0),
    ]
)


def subjects(images):
    return [
        torchio.Subject(image=torchio.ScalarImage(tensor=learning.as_real(image)[..., None]))
        for image in images
    ]


def collate(batch):
    """Collate subjects into images, simulated k-space and adjoint reconstructions."""
    return measure(learning.as_complex(subject["image"][torchio.DATA][..., 0]) for subject in batch)


train_loader = DataLoader(
    torchio.SubjectsDataset(subjects(train_images), transform=augmentation),
    batch_size=2,
    shuffle=True,
    collate_fn=collate,
)
valid_loader = DataLoader(
    torchio.SubjectsDataset(subjects(valid_images)), batch_size=2, collate_fn=collate
)

Network

Three objects:

• deepinv’s DnCNN [3], a residual convolutional denoiser of the family MoDL’s own five-layer network belongs to. It is an nn.Module operating on real images.

• bartorch.priors.ImplicitPrior, which presents the network as a regularization term. spatial=2, channels=2 converts between the network’s layout and a complex image: two channels for the real and imaginary parts, the batch axes folded, and each image scaled to unit peak modulus around the call.

• bartorch.learning.Unrolled, which applies the ADMM step ITERATIONS times. A single block is shared by every iteration, the weight sharing MoDL specifies, and rho is made differentiable, MoDL’s learned \(\lambda\).

alpha=1.0 disables BART’s over-relaxation, so that the step is the iteration written above; cg_maxiter is the x-update budget, MoDL’s ten.

from deepinv.models import DnCNN


def modl():
    """Construct an unrolled network and return it with the block it shares."""
    network = DnCNN(in_channels=2, out_channels=2, depth=5, pretrained=None)
    prior = priors.ImplicitPrior(network, spatial=2, channels=2)
    block = optim.ADMMBlock(prior, rho=0.05, alpha=1.0, cg_maxiter=10)
    block.rho.requires_grad_()
    return learning.Unrolled(block, iterations=ITERATIONS), block


model, block = modl()
learned = sum(p.numel() for p in model.parameters() if p.requires_grad)
print(f"{learned} learned values, shared by all {ITERATIONS} iterations")
print(f"rho starts at {float(block.rho.detach()):.3f}")

113155 learned values, shared by all 5 iterations
rho starts at 0.050

Training

lightning runs the loop. The module is the ordinary supervised one: a forward pass, a loss against the fully sampled image, and metrics from monai. The loss is taken on a tensor and requires nothing of the reconstruction that produced it.

psnr = PSNRMetric(max_val=1.0)
ssim = SSIMMetric(spatial_dims=2, data_range=1.0)


class Reconstruction(lightning.LightningModule):
    """Supervised training of an unrolled network against fully sampled images."""

    def __init__(self, model, lr=1e-3):
        super().__init__()
        self.model = model
        self.lr = lr

    def forward(self, y, start):
        return self.model(y, A, x0=start)

    def training_step(self, batch, index):
        x, y, start = batch
        loss = (self(y, start) - x).abs().square().mean()
        self.log("loss", loss, prog_bar=True)
        return loss

    def validation_step(self, batch, index):
        x, y, start = batch
        out = self(y, start).abs()[:, None]
        self.log("psnr", psnr(out, x.abs()[:, None]).mean(), prog_bar=True)
        self.log("ssim", ssim(out, x.abs()[:, None]).mean(), prog_bar=True)

    def configure_optimizers(self):
        return torch.optim.Adam(self.parameters(), lr=self.lr)


trainer = lightning.Trainer(
    max_epochs=EPOCHS,
    accelerator="cpu",
    logger=False,
    enable_checkpointing=False,
    enable_model_summary=False,
    gradient_clip_val=1.0,
)
trainer.fit(Reconstruction(model), train_loader, valid_loader)

print(f"rho ended at {float(block.rho.detach()):.3f}")

/opt/hostedtoolcache/Python/3.12.14/x64/lib/python3.12/site-packages/lightning/pytorch/utilities/_pytree.py:21: `isinstance(treespec, LeafSpec)` is deprecated, use `isinstance(treespec, TreeSpec) and treespec.is_leaf()` instead.
/opt/hostedtoolcache/Python/3.12.14/x64/lib/python3.12/site-packages/lightning/pytorch/trainer/connectors/data_connector.py:434: The 'val_dataloader' does not have many workers which may be a bottleneck. Consider increasing the value of the `num_workers` argument` to `num_workers=3` in the `DataLoader` to improve performance.
/opt/hostedtoolcache/Python/3.12.14/x64/lib/python3.12/site-packages/lightning/pytorch/trainer/connectors/data_connector.py:434: The 'train_dataloader' does not have many workers which may be a bottleneck. Consider increasing the value of the `num_workers` argument` to `num_workers=3` in the `DataLoader` to improve performance.
Epoch 14/14 ━━━━━━━━━━━━━━━━━ 12/12 0:00:08 • 0:00:00 1.43it/s loss: 0.000 psnr:
                                                               32.724 ssim:
                                                               0.889
rho ended at 0.027

Results

Three reconstructions of the same k-space serve as references: the adjoint, which the network is started from; a conjugate-gradient SENSE fit, which minimizes the data term alone; and the same ADMM iteration with a wavelet penalty in place of the denoiser, run for fifty iterations rather than five.

torch.manual_seed(7)
truth, kspace, adjoint = measure(valid_images)

with torch.no_grad():
    learnedrecon = model(kspace, A, x0=adjoint)

cg = torch.stack([optim.cg(item, A, maxiter=30) for item in kspace])
wavelet = torch.stack(
    [
        optim.admm(item, A, priors.Wavelet(axes=(-1, -2), weight=0.002), maxiter=50, rho=0.1)
        for item in kspace
    ]
)


def quality(estimate):
    """PSNR and SSIM of a batch of magnitudes against the reference magnitudes."""
    a, b = estimate.abs()[:, None], truth.abs()[:, None]
    return float(psnr(a, b).mean()), float(ssim(a, b).mean())


rows = {
    "adjoint": adjoint,
    "CG SENSE": cg,
    "ADMM, wavelet": wavelet,
    f"MoDL, K={ITERATIONS}": learnedrecon,
}
for name, estimate in rows.items():
    made = quality(estimate)
    print(f"{name:>16}   PSNR {made[0]:5.2f} dB   SSIM {made[1]:.3f}")

      adjoint   PSNR 23.71 dB   SSIM 0.679
     CG SENSE   PSNR 29.69 dB   SSIM 0.681
ADMM, wavelet   PSNR 31.64 dB   SSIM 0.898
    MoDL, K=5   PSNR 32.73 dB   SSIM 0.888

The table is not a comparison of methods. Fifteen epochs over twenty-four slices of one subject, set against a wavelet penalty of fifty iterations with a manually chosen weight, supports no conclusion about either on measured data. A quantitative comparison would require many subjects, validation on subjects excluded from training, and a fixed reconstruction time.

•
•
•

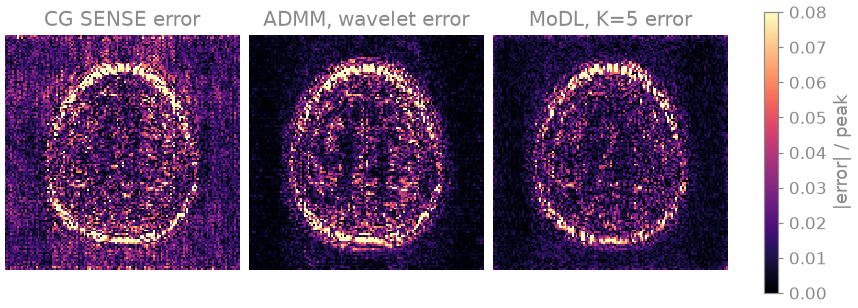

The adjoint shows the aliasing of the random undersampling and the noise. CG-SENSE removes most of the aliasing and amplifies the noise, most visibly in the error map. The wavelet penalty and the unrolled network both suppress the noise and leave their largest errors at the bright, thin scalp. After fifteen epochs the network, with five iterations, is close to the wavelet penalty with fifty: the two images differ little in the enlarged region. The network sees the data only through the x-update of each iteration, which holds the image to the measured k-space, so what it contributes is limited to what the undersampling and the noise leave undetermined.

Differentiating a deeper stack

Five iterations of a two-dimensional encoding record a graph of modest size. Ten iterations of a three-dimensional non-Cartesian encoding do not, and the memory is dominated by the denoiser’s activations: the backward pass of an operator is a further application of that operator and stores nothing growing with the iteration count, whereas a convolutional network stores every activation, once per iteration.

Unrolled provides two alternatives, neither of which changes the forward value (Differentiation through reconstruction):

• detach=True starts each iteration from a detached state, so that the graph spans one iteration. With a loss on each image yielded by steps(), this is greedy per-iteration training, whose memory is independent of the iteration count.

• checkpoint=True retains the states between iterations and recomputes the interior of a step during the backward pass. The gradient is the end-to-end one and each block is applied twice.

Pretraining the denoiser in isolation, then greedy per-iteration training, then end-to-end fine-tuning with checkpointing, is the staged schedule reported for a fully three-dimensional unrolled reconstruction [4], and the subject of Staged training of an unrolled network. Greedy training does not apply to the ADMM step: its image is the x-update, which depends on the denoiser only through the previous iteration’s auxiliary variable, and a detached start removes that dependence. The staged lesson uses a proximal-gradient step, whose image is the denoiser’s output.

The gradient of rho with checkpointing is compared below with the gradient recorded over the whole stack. rho enters every iteration and the conjugate-gradient solve of each x-update, so its gradient propagates through all of them.

x, y, start = measure(valid_images[:1])
made = []

for recompute in (False, True):
    stack = learning.Unrolled(block, iterations=ITERATIONS, checkpoint=recompute)
    for parameter in stack.parameters():
        parameter.grad = None
    (stack(y, A, x0=start) - x).abs().square().mean().backward()
    made.append(float(block.rho.grad))

print(f"rho's gradient: {made[0]:.6g} recorded, {made[1]:.6g} recomputed")

rho's gradient: 0.000277808 recorded, 0.000277808 recomputed

A third alternative is not to unroll. bartorch.optim.FixedPoint drives the block to its fixed point and differentiates there by solving the adjoint fixed-point equation, so that its memory is that of a single step irrespective of the iteration count. This is a deep-equilibrium model [5], of which the stack above is the truncated form.

References

[1]

Aggarwal HK, Mani MP, Jacob M. MoDL: model-based deep learning architecture for inverse problems. IEEE Trans Med Imaging 38(2):394-405 (2019). https://doi.org/10.1109/TMI.2018.2865356

[2]

Boyd S, Parikh N, Chu E, Peleato B, Eckstein J. Distributed optimization and statistical learning via the alternating direction method of multipliers. Found Trends Mach Learn 3(1):1-122 (2011). https://doi.org/10.1561/2200000016

[3]

Zhang K, Zuo W, Chen Y, Meng D, Zhang L. Beyond a Gaussian denoiser: residual learning of deep CNN for image denoising. IEEE Trans Image Process 26(7):3142-3155 (2017). https://doi.org/10.1109/TIP.2017.2662206

[4]

Urman Y, Nishimura M, Abraham DR, Cao X, Setsompop K. Fully 3D unrolled magnetic resonance fingerprinting reconstruction via staged pretraining and implicit gridding. Magn Reson Med 96(5):2516-2529 (2026). https://doi.org/10.1002/mrm.70500

[5]

Bai S, Kolter JZ, Koltun V. Deep equilibrium models. Advances in Neural Information Processing Systems 32:688-699 (2019). https://arxiv.org/abs/1909.01377
